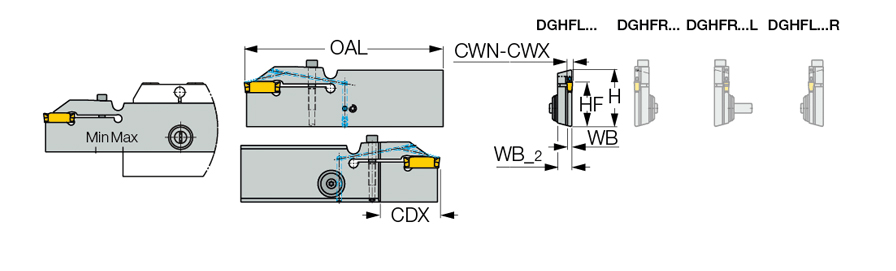

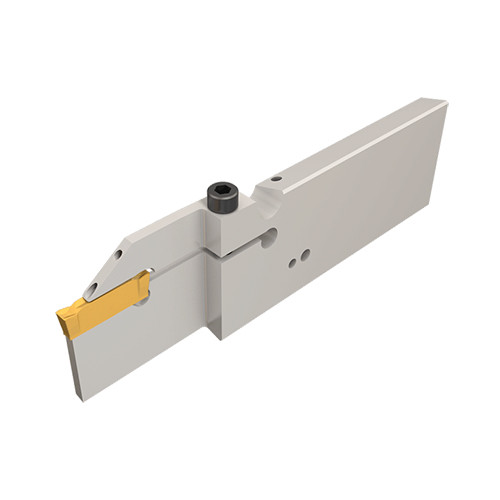

DGFHL 32BC-3T33R-JHP
Parting Off Holder; 4.37″ OAL × 0.118″ CW Min. × 1/8″ CW Max. × 1.299″ Max Depth ; Steel
| Shank Height (H) | 1.26″ | Application | | Ext. Grooving | Parting | |
| Body Width (WB) | 0.094″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.118″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 1/8″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 4.37″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 1.299″ | Measurement Type | Inch |
| Functional Length (LF) | 4.37″ | Body Width_2 (WB_2) | 0.311″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 2.44″ |
Product Features
| Family Description | Parting and grooving reinforced blades with channels for high-pressure coolant carrying DO-GRIP inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.139
