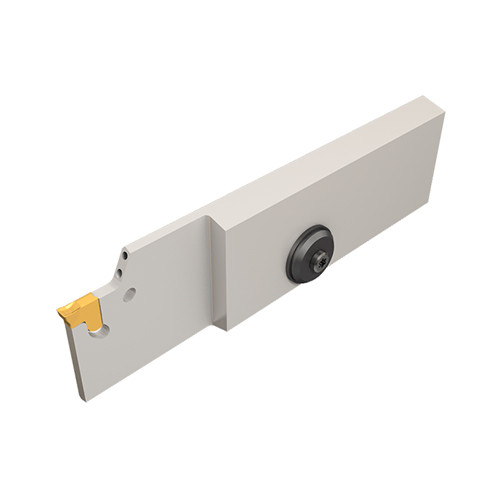

TGFHR 32C-3T33L-JHP
Parting Off Holder; 4.35″ OAL × 0.11″ CW Min. × 0.138″ CW Max. × 1.299″ Max Depth ; Steel

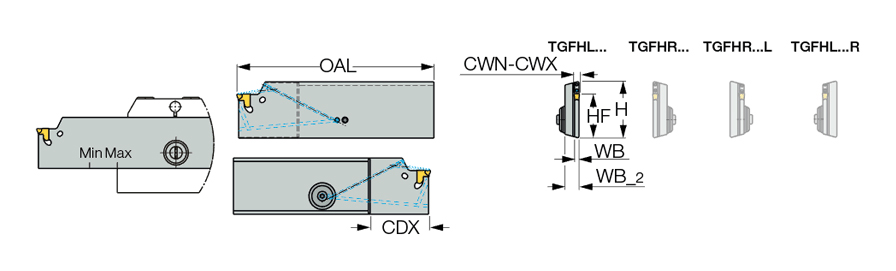

| Shank Height (H) | 1.26″ | Shank Standard | Square |
| Body Width (WB) | 0.098″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.11″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.138″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.35″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 1.299″ | Body Width_2 (WB_2) | 0.311″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.437″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Parting and grooving reinforced blades with channels for high-pressure coolant carrying TANG-GRIP inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.401
