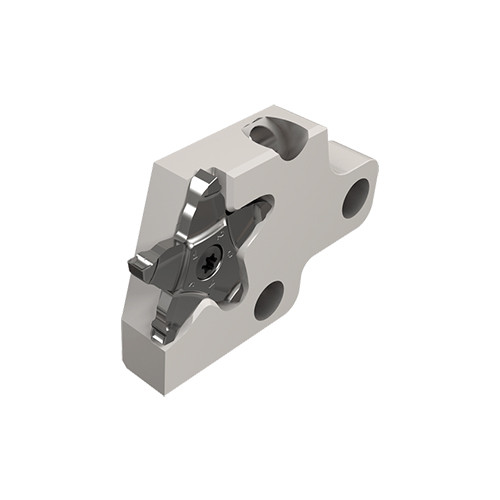

PCADL 34N-RE

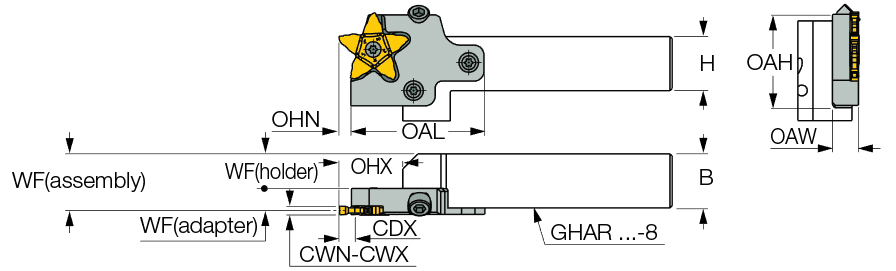

Parting Off Holder; 2.421″ OAL × 0.059″ CW Min. × 0.157″ CW Max. × 1.654″ OAH ; Steel
| Cutting Width Minimum (CWN) | 0.059″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.157″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 2.421″ | Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 1.654″ | Measurement Type | Inch |
| Cutting Position | External | Functional Width (WF) | 0.4″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 0″ |
| Shank Standard | Square |
Product Features
| Family Description | Reinforced adapters for PENTA 34 standard inserts in .060 to .157″ widths. Should be used mainly for the wider inserts and for heavy load or interrupted cut applications. | Country of Origin | Israel |
| Remarks | CDX and CUTDIA according to insert limitation H, B, and WF(holder) according to holder being used |
Shipping Info
Package Weight
0.430
