DGAD 5N

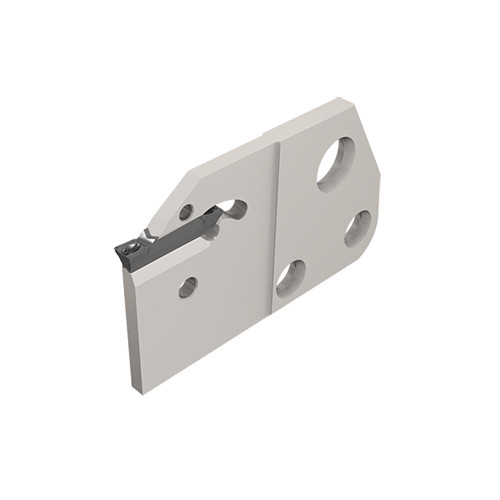

Parting Off Holder; 1.988″ OAL × 0.189″ CW Min. × 0.197″ CW Max. × 1.181″ OAH ; Steel
| Body Width (WB) | 0.157″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.189″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.197″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 1.988″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.968″ |
| Overall Height (OAH) | 1.181″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 0″ |
Product Features
| Family Description | Parting and grooving adapters for DO-GRIP double-ended inserts | Country of Origin | Israel |

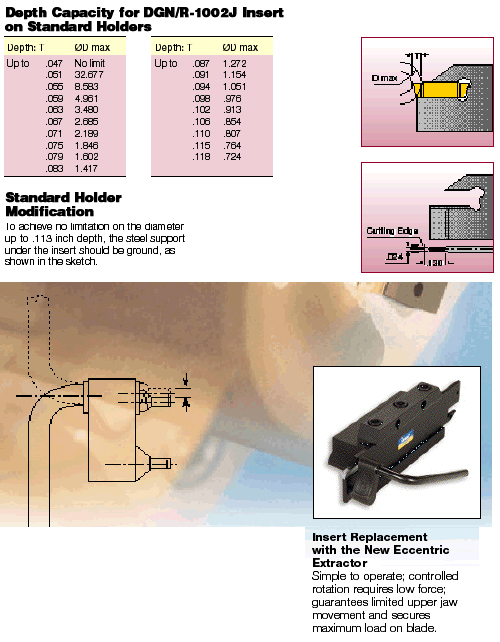

| Remarks | DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified -click on More Info. |
Shipping Info
Package Length
2.80000
Package Width
1.32000
Package Height
.24000
Package Weight
0.09
