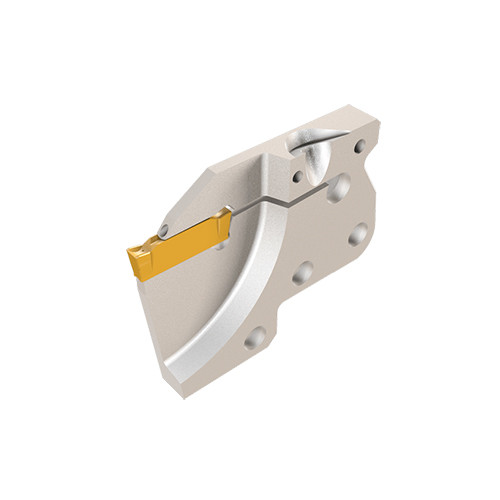

DGPAD-XL 3R-D65-JHP
Parting Off Holder; 2.362″ OAL × 0.118″ CW Min. × 1/8″ CW Max. × 1.693″ OAH ; Steel

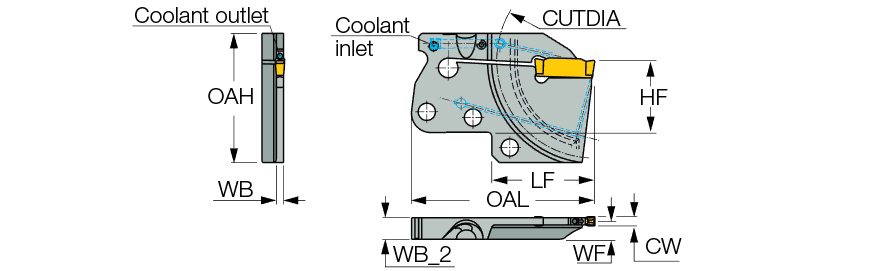

| Body Width (WB) | 0.0945″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.118″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 1/8″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.559″ |
| Overall Length (OAL) | 2.362″ | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 1.693″ | Measurement Type | Inch |
| Functional Length (LF) | 1.346″ | Functional Width (WF) | 0.236″ |
| Cutting Position | External | Body Width_2 (WB_2) | 0.283″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 0″ |
| Shank Standard | Square |
Product Features
| Family Description | Extra-long adapters with high pressure coolant channels carrying DO-GRIP parting and grooving inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.136
