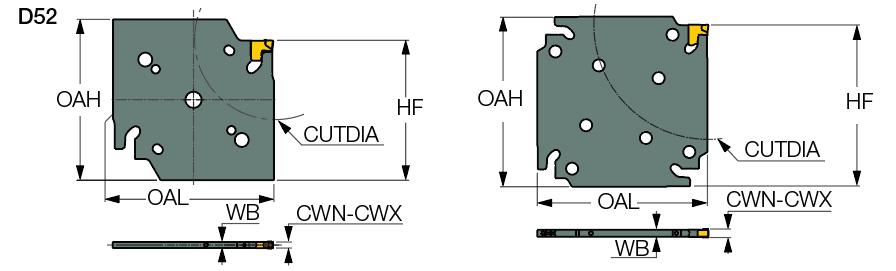

| Body Width (WB) | 0.1339″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.146″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.177″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.228″ |
| Overall Length (OAL) | 2.402″ | Cutting Direction (HAND) | Neutral |
| Overall Height (OAH) | 2.402″ | Measurement Type | Inch |
| Cutting Position | External | Tool Assembly Length (LTA) | 2.413″ |
| Application | | Ext. Grooving | Parting | Y Axis Parting & grooving | |

Product Features

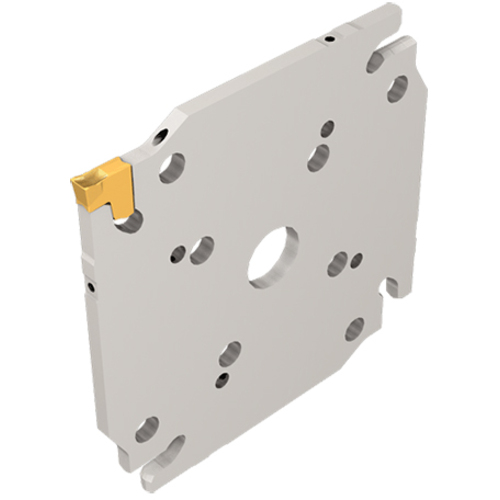

| Family Description | Parting and grooving square adapters carrying TANG-GRIP tangentially clamped inserts | Country of Origin | Israel |
| Remarks | Suitable for all TANG-GRIP inserts D42 and D52 Adapters available with two pockets |
Shipping Info
Package Weight
0.313
