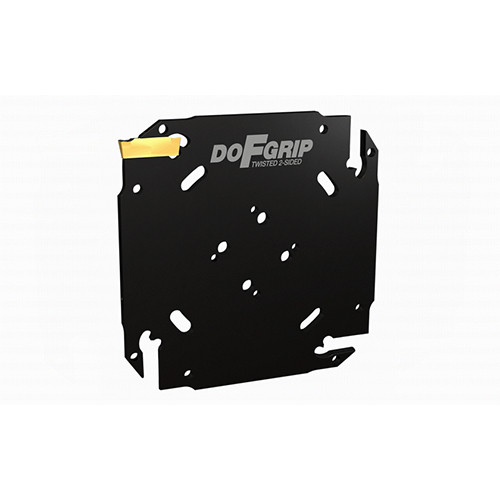

DGAQ D82-5-2Z-JHP
Parting Off Holder; 2.535″ OAL × 0.197″ CW Min. × 0.197″ CW Max. × 2.535″ OAH ; Steel

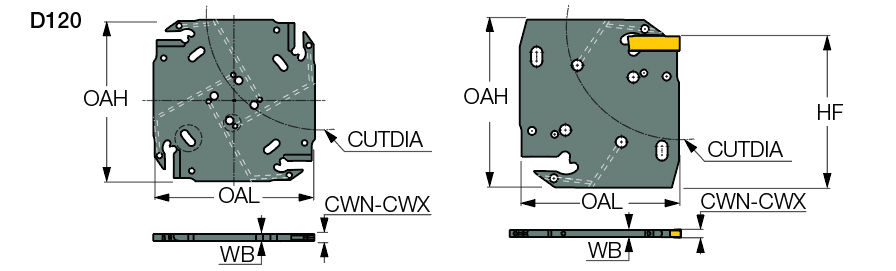

| Body Width (WB) | 0.1575″ | Application | | Ext. Grooving | Parting | Y Axis Parting & grooving | |
| Cutting Width Minimum (CWN) | 0.197″ | Shank Standard | Square |
| Cutting Width Maximum (CWX) | 0.197″ | Body Material | Steel |
| Overall Length (OAL) | 2.535″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.228″ |
| Overall Height (OAH) | 2.535″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
Product Features
| Family Description | Parting and grooving square adapters with internal coolant holes carrying DO-GRIP inserts. | Country of Origin | Israel |
| Remarks | When using .079 and .118 double-sided inserts, the depth of cut is limited up to .75. For larger depth, use a DGNM type single-ended insert. |
Shipping Info
Package Weight
0.353
