PCHL 19-34-JHP
Parting Off Holder; 5.32″ OAL × 0.059″ CW Min. × 0.157″ CW Max. × 0.394″ Max Depth ; Steel

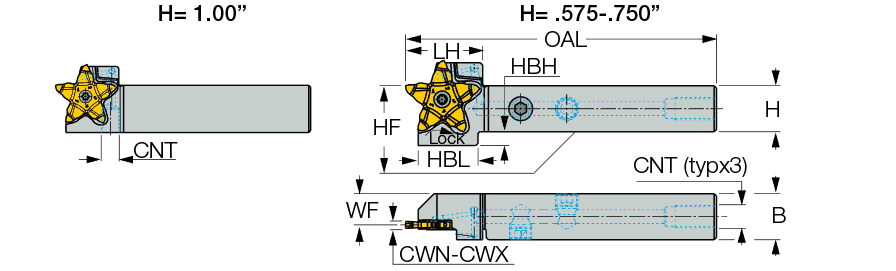

| Shank Height (H) | 3/4″ | Shank Standard | Square |
| Shank Width (B) | 3/4″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.059″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.157″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 5.32″ | Measurement Type | Inch |
| Head Length (LH) | 1.3″ | Functional Width (WF) | 0.49″ |
| Cutting Depth Maximum (CDX) | 0.394″ | Coolant Entry Thread Size (CNT) | G1/8-28 |
| Cutting Position | External | Head Bottom Offset Height (HBH) | 0.24″ |
| Application | | Ext. Grooving | Face Grooving | Parting | | Tool Assembly Length (LTA) | 1.791″ |
Product Features
| Family Description | Grooving, parting and recessing tools carrying PENTA inserts with channels for high-pressure coolant. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
0.915
