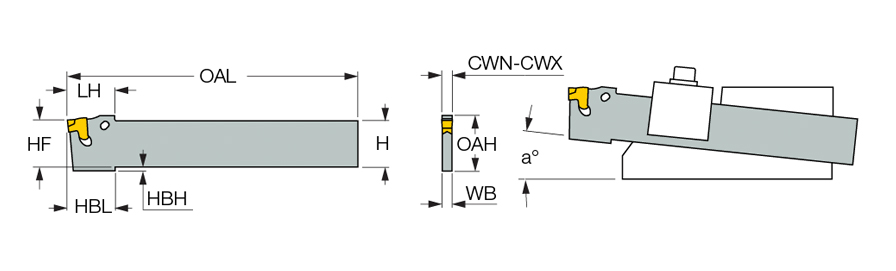

| Shank Height (H) | 0.685″ | Shank Standard | Square |
| Body Width (WB) | 0.065″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.071″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.094″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.378″ |
| Overall Length (OAL) | 4.331″ | Cutting Direction (HAND) | Neutral |
| Head Length (LH) | 0.709″ | Measurement Type | Inch |
| Overall Height (OAH) | 0.74″ | Head Bottom Offset Height (HBH) | 0.06″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.102″ |
| Application | | Ext. Grooving | Parting | |

Product Features

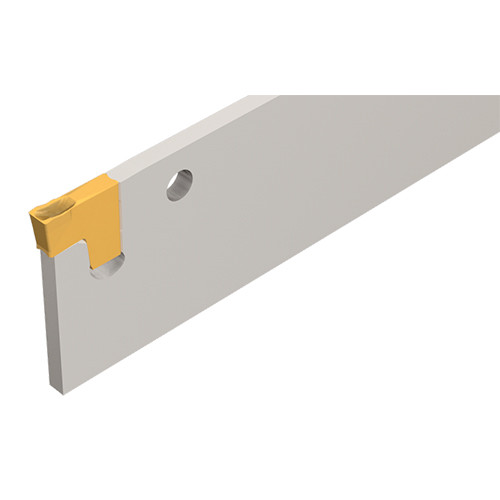

| Family Description | Blades for multi-spindle machines - replacement for HSS and brazed tools, using TANG-GRIP tangentially clamped inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.077
