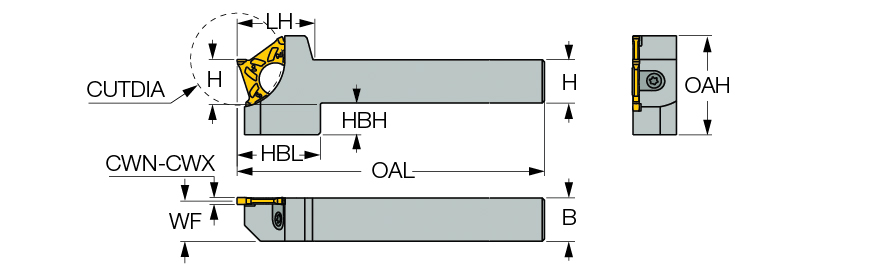

PCHL 16-D40-3-IQ
Parting Off Holder; 5.315″ OAL × 0.118″ CW Min. × 0.126″ CW Max. × 1.71″ OAH ; Steel
| Shank Height (H) | 0.63″ | Shank Standard | Square |
| Shank Width (B) | 0.63″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.118″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.126″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.575″ |
| Overall Length (OAL) | 5.315″ | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 1.311″ | Measurement Type | Inch |
| Overall Height (OAH) | 1.71″ | Functional Width (WF) | 0.579″ |
| Cutting Position | External | Head Bottom Offset Height (HBH) | 0.67″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 1.741″ |
Product Features
| Family Description | Grooving and parting tools carrying inserts with 5 cutting edges. | Country of Origin | Israel |

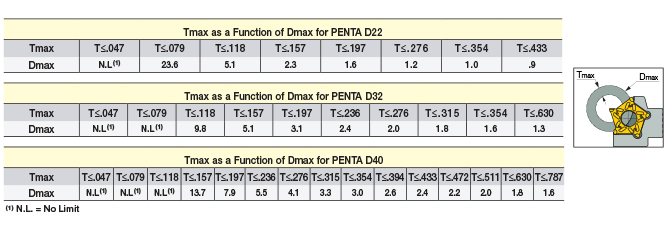

| Remarks | For parting and grooving range, click on More Info |
Shipping Info
Package Weight
0.968
