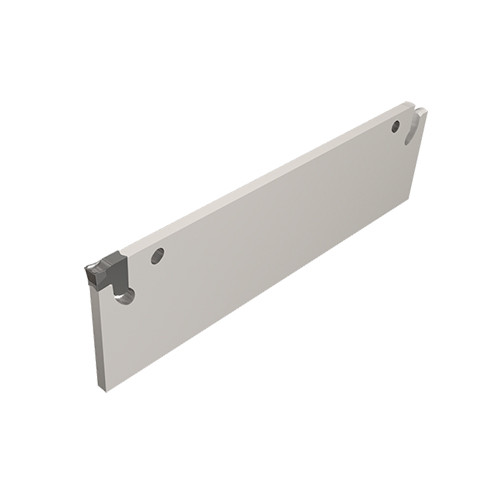

TGFH 17MB-2 L58
Parting Off Holder; 2.283″ OAL × 0.071″ CW Min. × 0.094″ CW Max. × 0.453″ Max Depth ; Steel

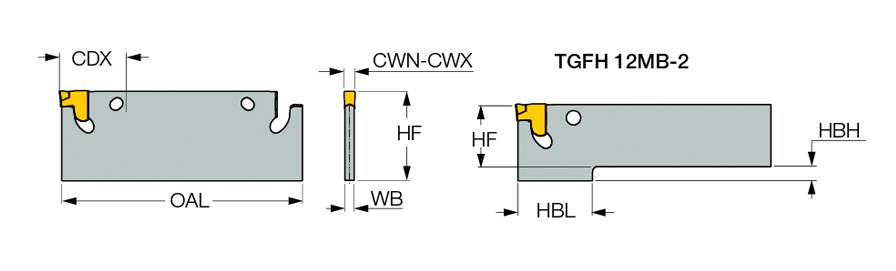

| Body Width (WB) | 0.065″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.071″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.094″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 2.283″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.453″ | Measurement Type | Inch |
| Cutting Position | External | Body Width_2 (WB_2) | 0.067″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 0.844″ |
| Number of Pocket (NOP) | 2 |
Product Features
| Family Description | Parting and grooving blades for other manufacturers blocks, carrying TANG-GRIP single-ended, tangentially clamped inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.044
