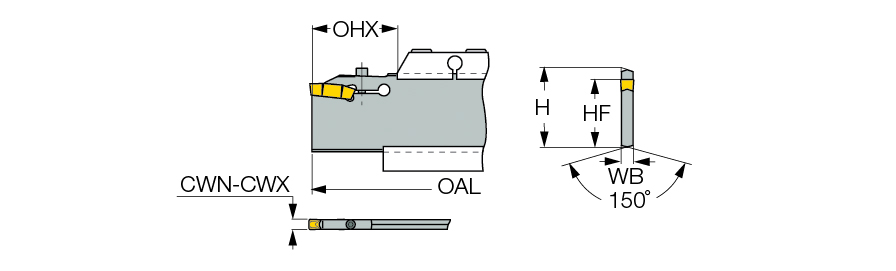

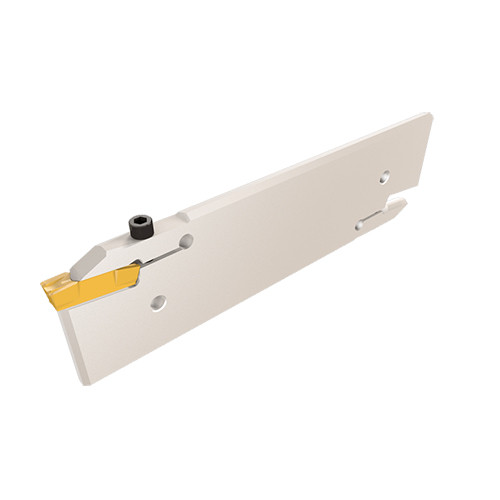

CGHN 52-8D
Parting Off Holder; 7.48″ OAL × 0.315″ CW Min. × 0.327″ CW Max. ; Steel
| Shank Height (H) | 2.071″ | Shank Standard | Square |
| Body Width (WB) | 0.291″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.315″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.327″ | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 7.48″ | Measurement Type | Inch |
| Cutting Position | External | Body Width_2 (WB_2) | 0.291″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | | Tool Assembly Length (LTA) | 2.43″ |
| Number of Pocket (NOP) | 2 |
Product Features
| Family Description | Heavy duty, deep grooving and turning blades. | Country of Origin | Israel |

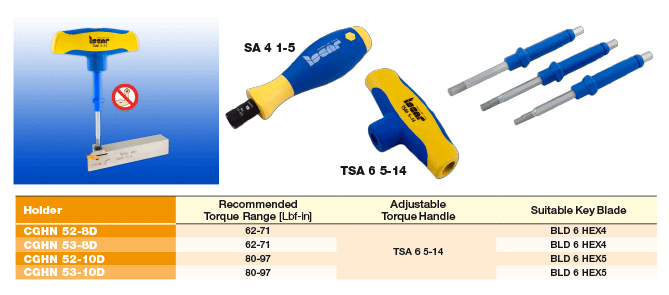

| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
1.236
