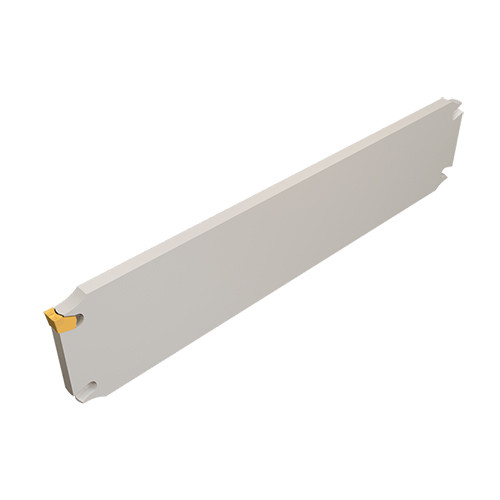

SGFH 100-12
Parting Off Holder; 18.11″ OAL × 0.461″ CW Min. × 0.512″ CW Max. ; Steel

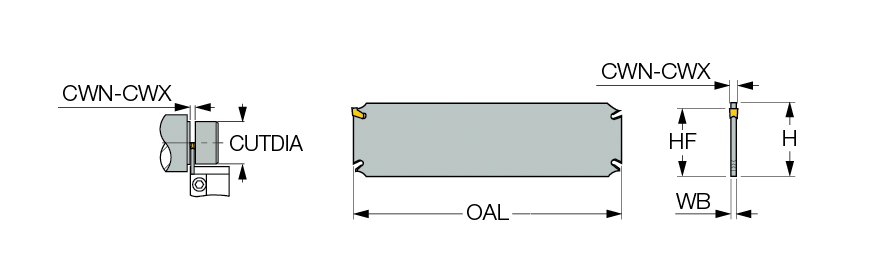

| Shank Height (H) | 3.937″ | Shank Standard | Square |
| Body Width (WB) | 0.437″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.461″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.512″ | Work Piece Parting Diameter Maximum (CUTDIA) | 17.717″ |
| Overall Length (OAL) | 18.11″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 8.937″ |
| Number of Pocket (NOP) | 4 |
Product Features
| Family Description | SELF-GRIP parting and grooving, four-pocket blades. | Country of Origin | Israel |
Shipping Info
Package Weight
11.122
