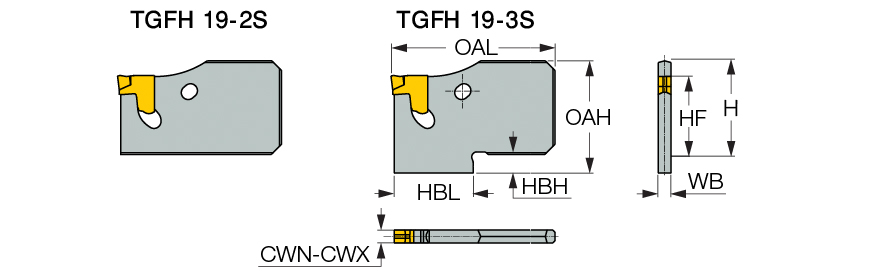

TGFH 19-2S
Parting Off Holder; 1.26″ OAL × 0.071″ CW Min. × 0.094″ CW Max. × 0.472″ Max Depth × 3/4″ OAH ; Steel
| Shank Height (H) | 0.748″ | Application | | Ext. Grooving | Parting | |
| Body Width (WB) | 0.065″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.071″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.094″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 1.26″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.417″ |
| Cutting Depth Maximum (CDX) | 0.472″ | Cutting Direction (HAND) | Neutral |
| Overall Height (OAH) | 3/4″ | Measurement Type | Inch |
| Cutting Position | External | Tool Assembly Length (LTA) | 0.709″ |
Product Features
| Family Description | Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Excellent tool and pocket life. | Country of Origin | Israel |
| Remarks | For Dmax and Tmax drawing, see SGBHR/L holder |
Shipping Info
Package Weight
0.029
