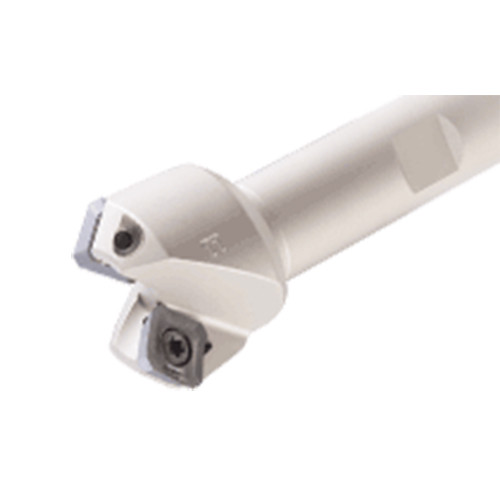

F45ST D1.50-W1.00
Indexable End Mill; 1-1/2″ Dia. × 0.26″ LOC × 1″ Shank Dia. × 4″ OAL ; Weldon Shank ; 45 Degrees

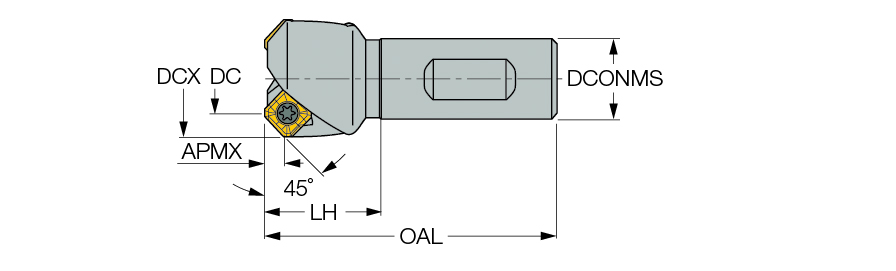

| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1.29″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 3 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.26″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 4″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Measurement Type | Inch |
| Application | | Facing | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | SEMT 43AFTN-76 | Cutting Diameter Maximum (DCX) | 2.01″ |
| Weight of Item (WT) | 1.11 Lbs |
Product Features
| Family Description | 45° screw clamped endmills with SEK/MT 12... inserts. | Country of Origin | Israel |
| Remarks | SE..1204 inserts are directly mounted on the cutter. SE..12T3 optional thinner inserts are mounted on a seat - TSE 12T3-N. For adaptation click on More Info. |
