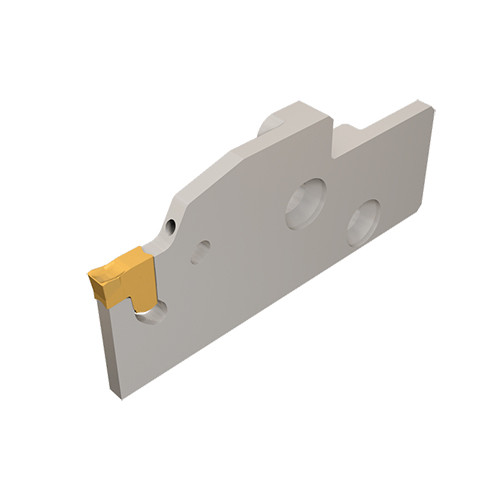

TGAD 2RE-D54-JHP
Parting Off Holder; 2.295″ OAL × 0.071″ CW Min. × 0.094″ CW Max. × 1.016″ OAH ; Steel

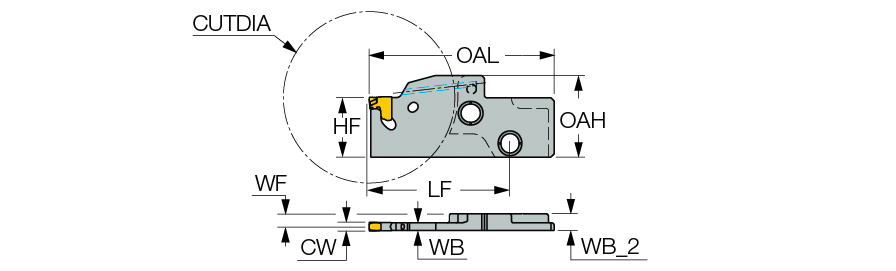

| Body Width (WB) | 0.065″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.071″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.094″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.126″ |
| Overall Length (OAL) | 2.295″ | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 1.016″ | Measurement Type | Inch |
| Functional Length (LF) | 1.748″ | Functional Width (WF) | 0.176″ |
| Cutting Position | External | Body Width_2 (WB_2) | 0.209″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 2.233″ |
Product Features
| Family Description | Parting and grooving adapters with channels for high-pressure coolant, carrying TANG-GRIP inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.077
