DGTR 20B-2D35-JHP-SL-MC

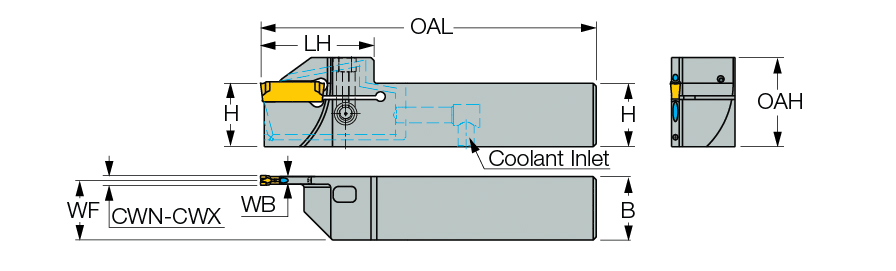

Parting Off Holder; 102.1 mm OAL × 1.9 mm CW Min. × 2.5 mm CW Max. × 28.1 mm OAH ; Steel
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 20 mm | Shank Standard | Square |
| Body Width (WB) | 1.7 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 1.9 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 35 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 102.1 mm | Measurement Type | Metric |
| Head Length (LH) | 32.1 mm | Functional Width (WF) | 19.15 mm |
| Overall Height (OAH) | 28.1 mm | Tool Assembly Length (LTA) | 43.05 mm |
| Cutting Position | External |
Product Features

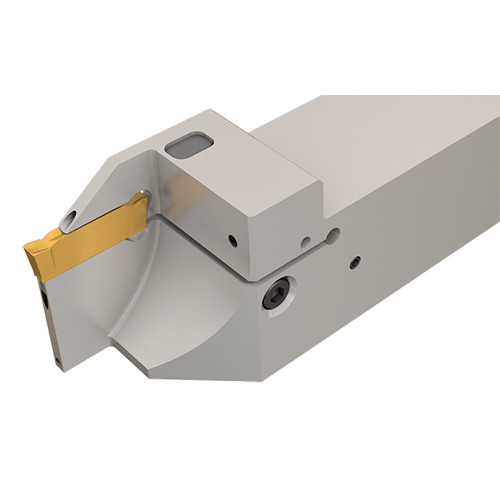

| Family Description | Parting and grooving side lock type tools with bottom inlets for high-pressure coolant and a user friendly side clamping mechanism. | Country of Origin | Israel |
| Remarks | For insert depth capacity table and modification instructions for the holder pockets, click on More Info |
Shipping Info
Package Weight
0.800
