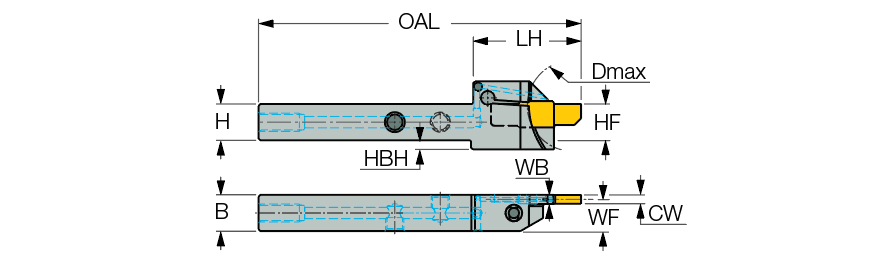

BGTL 20B-D20-JHP
Parting Off Holder; 142 mm OAL × 0.8 mm CW Min. × 1.5 mm CW Max. × 20 mm Max Depth ; Steel
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 20 mm | Shank Standard | Square |
| Body Width (WB) | 4 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.8 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 40 mm |
| Cutting Width Maximum (CWX) | 1.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 142 mm | Measurement Type | Metric |
| Head Length (LH) | 47.5 mm | Functional Width (WF) | 18 mm |
| Cutting Depth Maximum (CDX) | 20 mm | Coolant Entry Thread Size (CNT) | G1/8 |
| Cutting Position | External | Tool Assembly Length (LTA) | 58.5 mm |
Product Features
| Family Description | Integral shank reinforced parting and grooving tools with coolant channels carrying narrow double-ended inserts for parting up to 20 mm bars. | Country of Origin | Israel |
Shipping Info
Package Weight
0.972
