T290 ELN D.38-02-MMT06*05

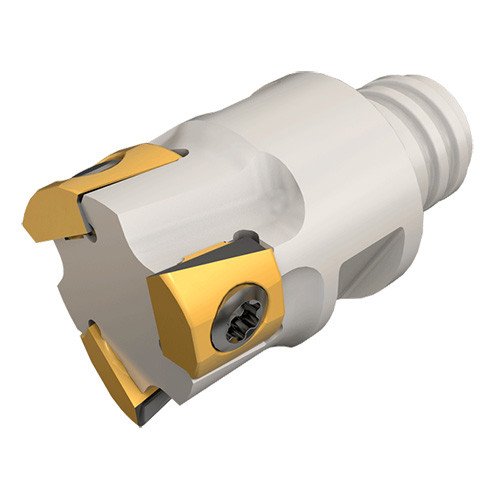

Indexable End Mill; 3/8″ Dia. × 0.197″ Max Depth × 0.34″ Shank Dia. × 0.79″ OAL ; 2 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3/8″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 3/8″ | Connection Thread Nominal Size Machine Side (THSZMS) | T06 |
| Cutting Item Count (CICT) | 2 | Drive Size (DRVS) | 0.315″ |
| Depth of Cut Maximum (APMX) | 0.197″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 0.79″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.34″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | T290 LNHT 050202TR | Body Material | Steel |
| Weight of Item (WT) | 0.01 Lbs | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 0.52″ |
Product Features
| Family Description | Endmills with a MULTI-MASTER adaptation carrying tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection For cutting recommendations, click on "More Info" |
Shipping Info
Package Weight
0.066
Related Documentation
