THMPL 25.4-D45-JHP
Parting Off Holder; 4.921″ OAL ; Steel

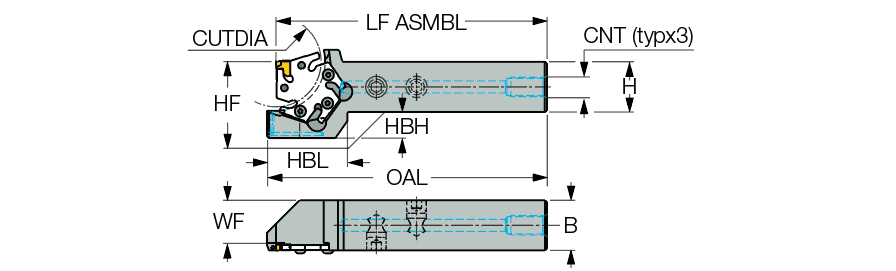

| Shank Height (H) | 1″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.772″ |
| Shank Width (B) | 1″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 4.921″ | Measurement Type | Inch |
| Functional Length (LF) | 2.47″ | Functional Width (WF) | 0.896″ |
| Cutting Position | External | Coolant Entry Thread Size (CNT) | G1/8 |
| Shank Standard | Square | Head Bottom Offset Height (HBH) | 0.496″ |
| Body Material | Steel | Tool Assembly Length (LTA) | 0.815″ |
Product Features
| Family Description | Holders with high-pressure coolant channels for pentagonal TANG-GRIP adapters. | Country of Origin | Israel |
Shipping Info
Package Length
2.00000
Package Width
2.00000
Package Height
5.50000
Package Weight
1.570
