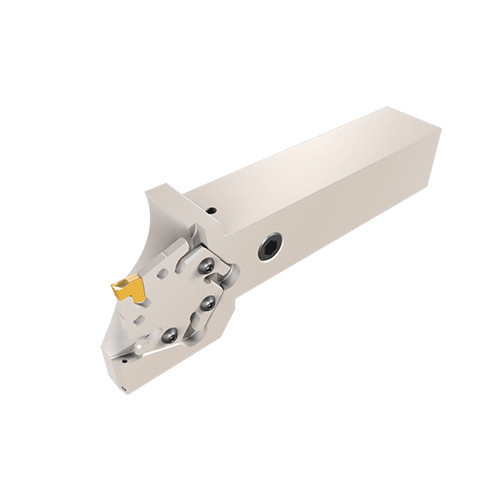

THMPL 25-D45-JHP
Parting Off Holder; 125 mm OAL ; Steel

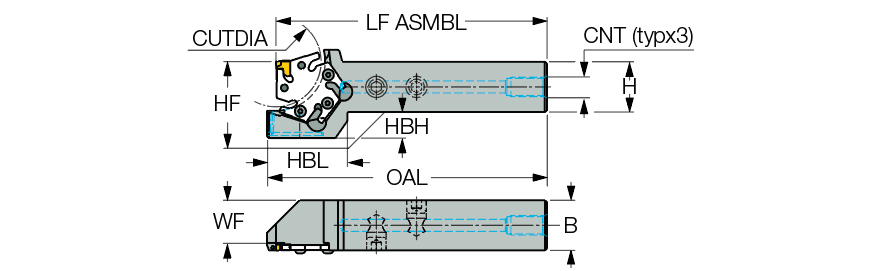

| Shank Height (H) | 25 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 45 mm |
| Shank Width (B) | 25 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 125 mm | Measurement Type | Metric |
| Functional Length (LF) | 62.81 mm | Functional Width (WF) | 22.35 mm |
| Cutting Position | External | Coolant Entry Thread Size (CNT) | G1/8 |
| Shank Standard | Square | Head Bottom Offset Height (HBH) | 13 mm |
| Body Material | Steel | Tool Assembly Length (LTA) | -14.08 mm |
Product Features
| Family Description | Holders with high-pressure coolant channels for pentagonal TANG-GRIP adapters. | Country of Origin | Israel |
Shipping Info
Package Weight
1.530
