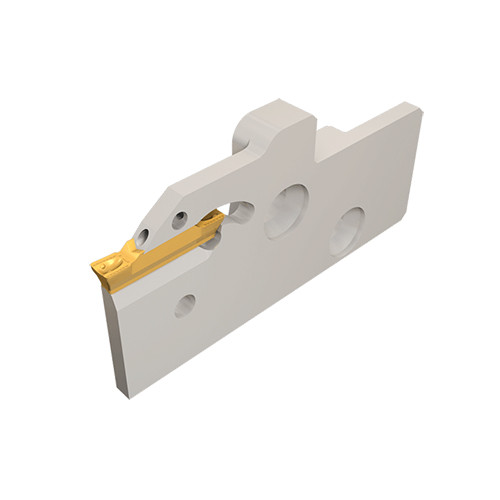

HGAD 3RE-D42-JHP
Parting Off Holder; 2.061″ OAL × 0.118″ CW Min. × 0.118″ CW Max. × 1.016″ OAH ; Steel

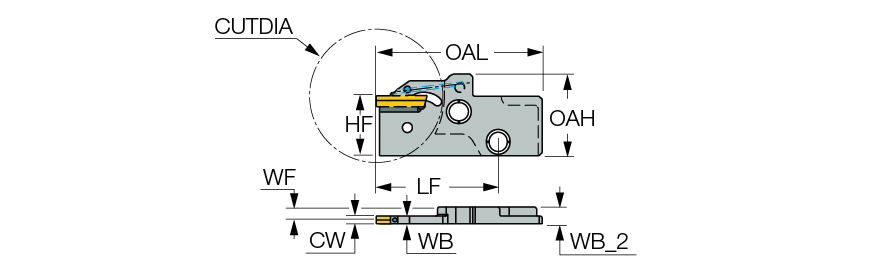

| Body Width (WB) | 0.0964″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.118″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.118″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.654″ |
| Overall Length (OAL) | 2.061″ | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 1.016″ | Measurement Type | Inch |
| Functional Length (LF) | 1.512″ | Functional Width (WF) | 0.161″ |
| Cutting Position | External | Body Width_2 (WB_2) | 0.209″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Tool Assembly Length (LTA) | 2.061″ |
Product Features
| Family Description | Parting and grooving adapters with channels for high-pressure coolant, carrying DO-GRIP inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.075
