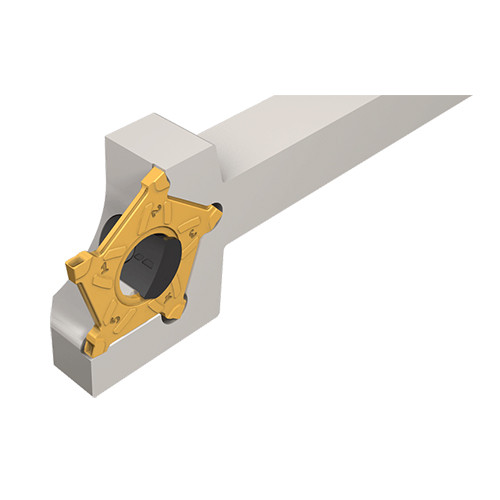

PCHR 20-D22-2-IQ
Parting Off Holder; 120 mm OAL × 2 mm CW Min. × 2.4 mm CW Max. × 25.5 mm OAH ; Steel

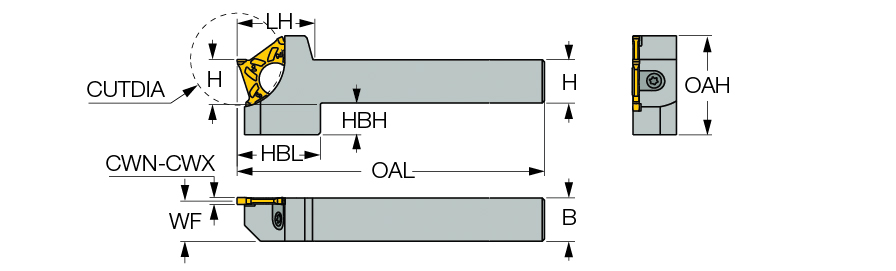

| Shank Height (H) | 20 mm | Shank Standard | Square |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 2 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 2.4 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 22 mm |
| Overall Length (OAL) | 120 mm | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 26.9 mm | Measurement Type | Metric |
| Overall Height (OAH) | 25.5 mm | Functional Width (WF) | 19.4 mm |
| Cutting Position | External | Tool Assembly Length (LTA) | 32.81 mm |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Grooving and parting tools carrying inserts with 5 cutting edges. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info |
Shipping Info
Package Weight
1.082
