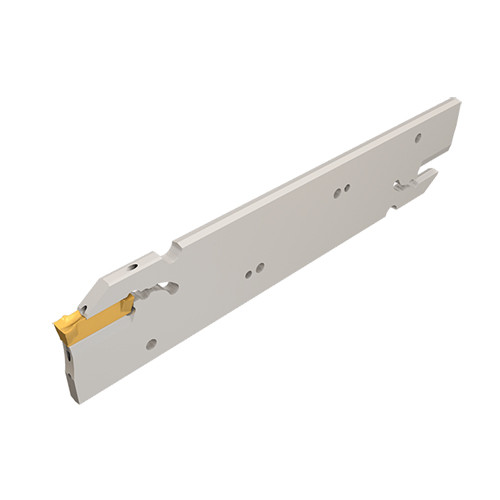

DGFH 32-6-JHP
Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts.
| Shank Height (H) | 1.26″ | Number of Pocket (NOP) | 2 |
| Body Width (WB) | 0.205″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.236″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 1/4″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 6.299″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.543″ |
| Functional Length (LF) | 6.299″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 1.772″ |
Product Features
| Family Description | Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.452
