DGTR 12.7B-3D24SH
Parting Off Holder; 4.7″ OAL × 0.118″ CW Min. × 1/8″ CW Max. × 0.7″ OAH ; Steel
| Shank Height (H) | 1/2″ | Shank Standard | Square |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Body Width (WB) | 0.094″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.118″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.7″ | Measurement Type | Inch |
| Head Length (LH) | 3/4″ | Functional Width (WF) | 0.45″ |
| Overall Height (OAH) | 0.7″ | Head Bottom Offset Height (HBH) | 0.05″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.14″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Parting and grooving short head tools for CNC and Swiss automatics. | Country of Origin | Israel |
| Remarks | DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on More Info |
Shipping Info
Package Length
1.50000
Package Width
1.50000
Package Height
5.00000
Package Weight
0.381
Related Documentation

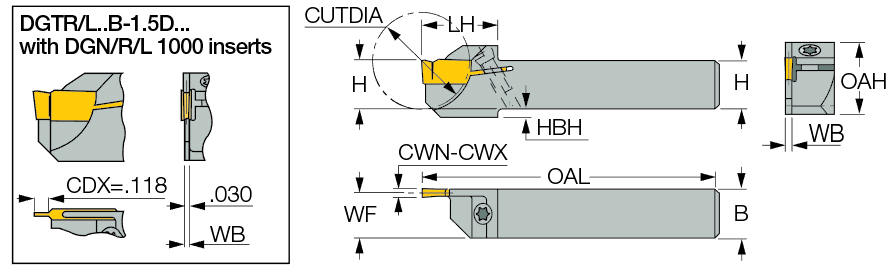

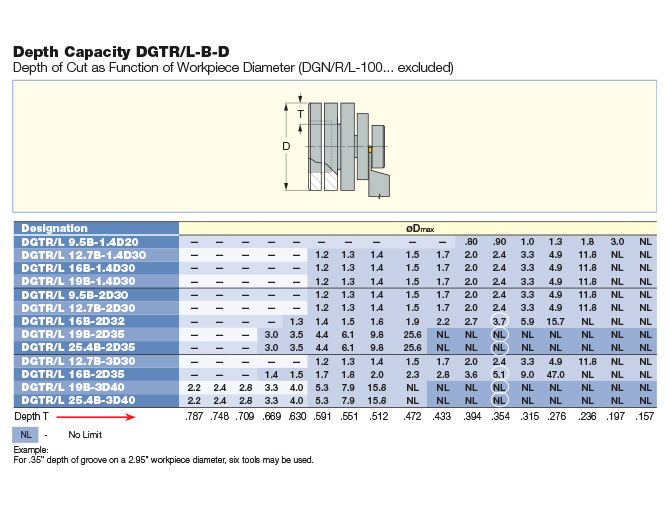

DG..1.0 insert can be mounted into pocket sizes 2 and 3. For DGN/R/L 1 mm inserts' depth capacity table and modification instructions for the holder pocket, see below.
