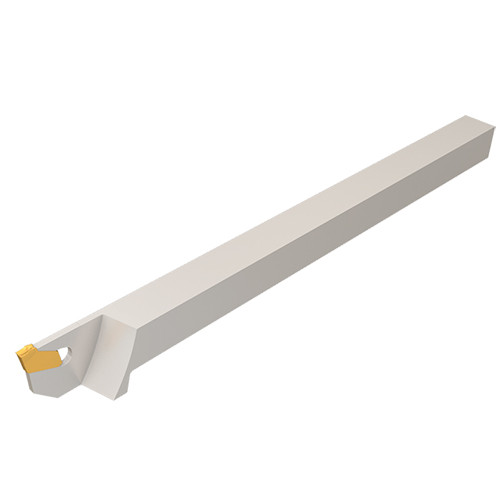

SGAFL 10-1.2-D18
Parting Off Holder; 4.724″ OAL × 0.047″ CW Min. × 0.047″ CW Max. ; Steel

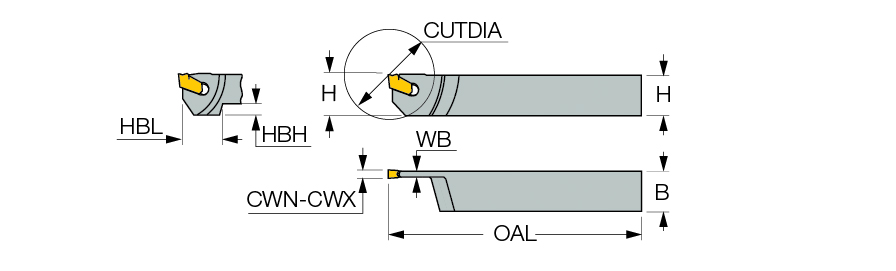

| Shank Height (H) | 0.394″ | Shank Standard | Square |
| Shank Width (B) | 0.394″ | Body Material | Steel |
| Body Width (WB) | 0.035″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.047″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.71″ |
| Cutting Width Maximum (CWX) | 0.047″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 4.724″ | Measurement Type | Inch |
| Head Length (LH) | 0.472″ | Head Bottom Offset Height (HBH) | 0.08″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 0.891″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | SELF-GRIP integral shank tool for Swiss automatic machines. | Country of Origin | Israel |
Shipping Info
Package Weight
0.251
