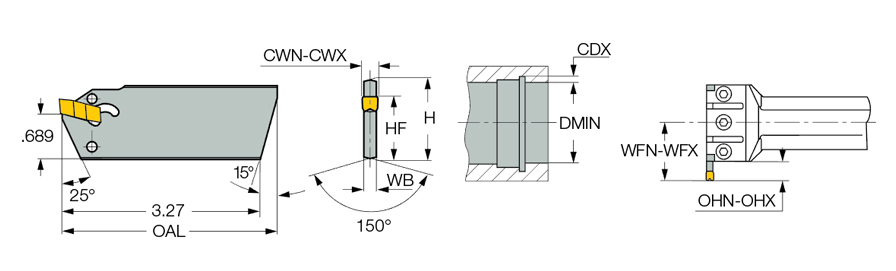

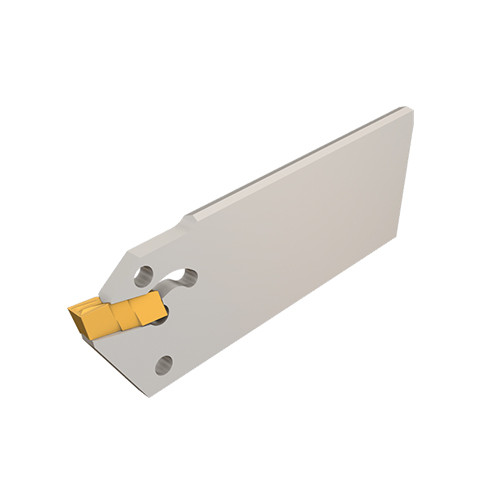

CGHN 32-5DGM
Parting Off Holder; 3.543″ OAL × 0.173″ CW Min. × 0.252″ CW Max. ; Steel
| Shank Height (H) | 1.26″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Int.) | |
| Body Width (WB) | 0.157″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.173″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.252″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 3.543″ | Cutting Direction (HAND) | Neutral |
| Minimum Bore Diameter (DMIN) | 3.661″ | Measurement Type | Inch |
| Cutting Position | Internal | Tool Assembly Length (LTA) | 1.469″ |
Product Features
| Family Description | Internal single-ended grooving and turning blades using self-clamped inserts. | Country of Origin | Israel |

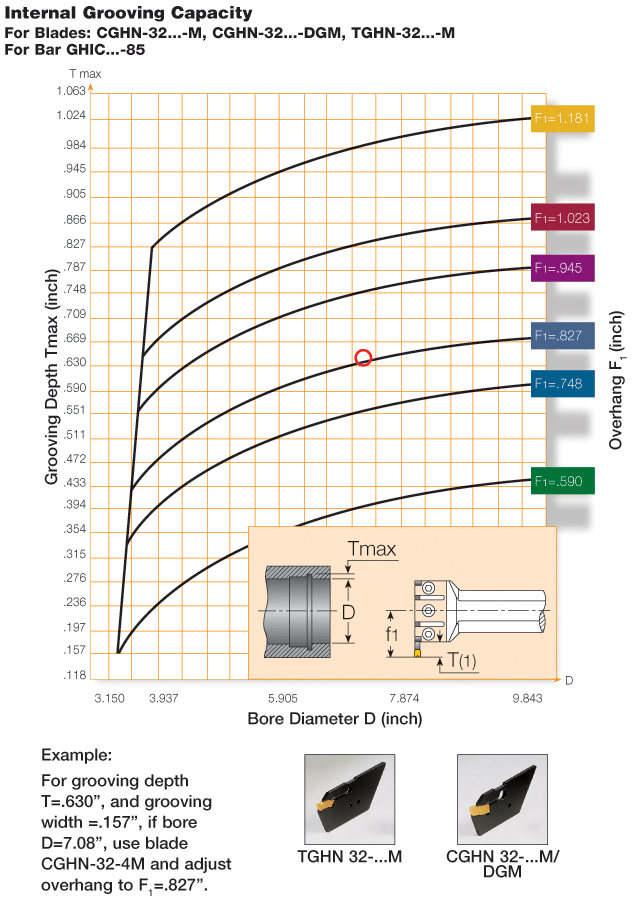

| Remarks | Grooving depth (CDX) varies in conformance with blade's overhang (WFN-WFX and it depends on the bore diameter (D) For grooving capacity, click More Info CGHN 32...DGM can be modified from external double-sided CGHN-DG blades When TIP inserts are used, the seat needs to be modified to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified |
