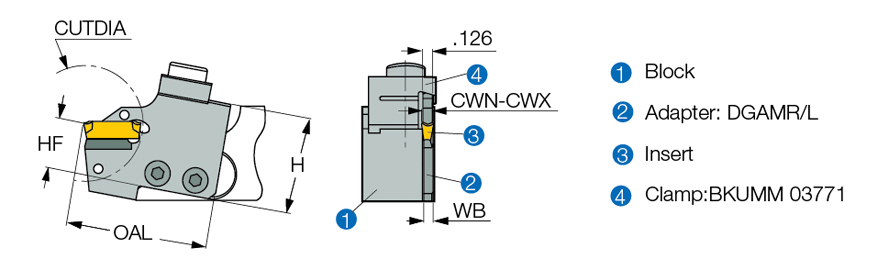

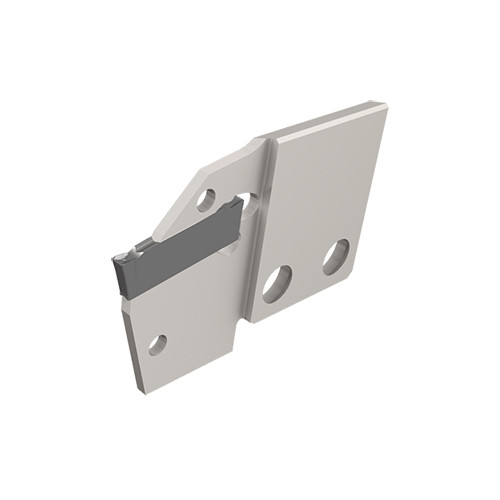

DGAMR 32-3
Parting Off Holder; 1.87″ OAL × 0.118″ CW Min. × 1/8″ CW Max. ; Steel
| Shank Height (H) | 1.1″ | Shank Standard | Square |
| Body Width (WB) | 0.094″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.118″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1.87″ | Measurement Type | Inch |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.291″ |
| Application | | Ext. Grooving | Parting | |
Product Features

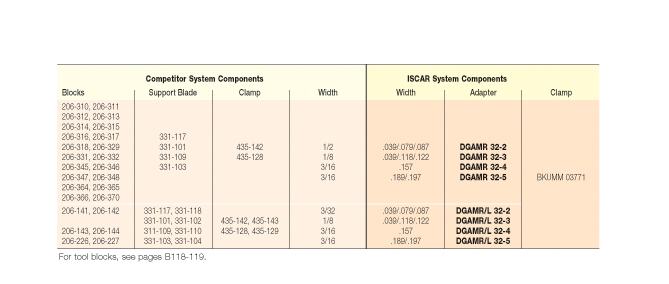

| Family Description | Parting and grooving replacement adapter for DO-GRIP double-ended inserts, for Other manufacturers' holders. | Country of Origin | Israel |
| Remarks | DG..1.0 insert can be mounted into pocket sizes 2 and 3. In that case the pocket width has to be modified -click on More Info. |
Shipping Info
Package Weight
0.061
