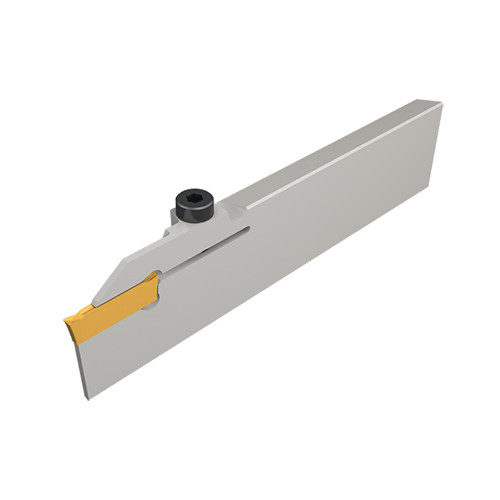

DGFHL 26B-2TR-D36R
Parting Off Holder; 4.331″ OAL × 0.075″ CW Min. × 0.098″ CW Max. × 1.1″ OAH ; Steel

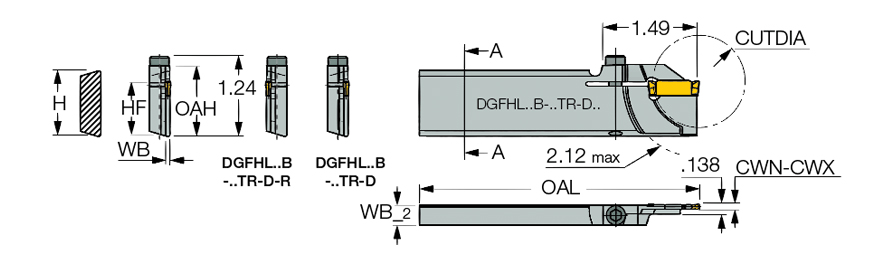

| Shank Height (H) | 1.024″ | Shank Standard | Square |
| Body Width (WB) | 0.063″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.075″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.098″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.417″ |
| Overall Length (OAL) | 4.331″ | Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 1.1″ | Measurement Type | Inch |
| Functional Length (LF) | 4.331″ | Body Width_2 (WB_2) | 0.311″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 2.146″ |
| Application | | Ext. Grooving | Parting | |

Product Features
| Family Description | Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts. For Traub and Index machines. | Country of Origin | Israel |
| Remarks | Insert limit is Tmax=.709. If deeper penetration is required, the insert should be modified into single-ended by the user DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-click on More Info |
Shipping Info
Package Weight
0.342
