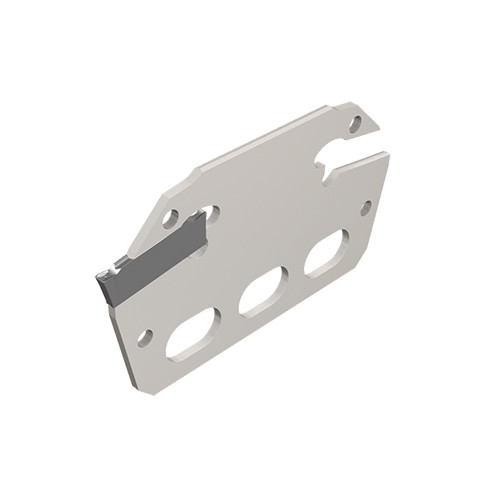

DGAMM 48-4
Parting Off Holder; 3.06″ OAL × 0.157″ CW Min. × 0.157″ CW Max. ; Steel
| Shank Height (H) | 1.89″ | Application | | Ext. Grooving | Parting | |
| Body Width (WB) | 0.126″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.157″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.157″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 3.06″ | Measurement Type | Inch |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.565″ |
Product Features
| Family Description | Replacment DO-GRIP adapter for other manufacturers' holders. Parting and Grooving, with double-ended inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.196
