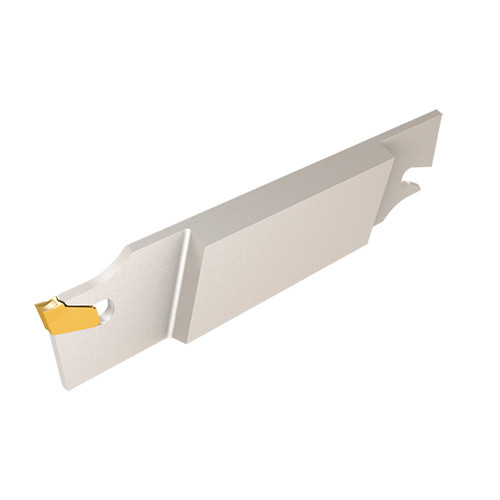

SGFHL 32 T 33 - 4
Parting Off Holder; 4.331″ OAL × 0.139″ CW Min. × 0.178″ CW Max. ; Steel

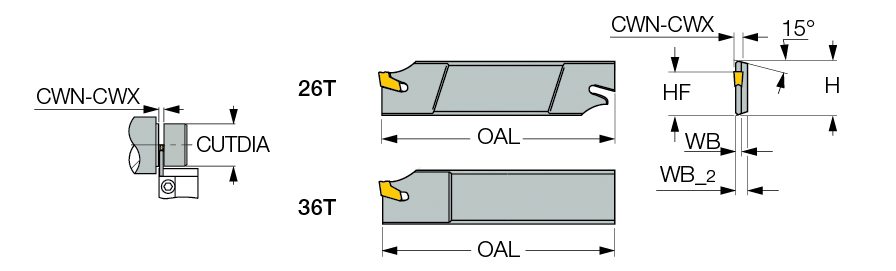

| Shank Height (H) | 1.26″ | Shank Standard | Square |
| Body Width (WB) | 0.134″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.139″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.178″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.362″ |
| Overall Length (OAL) | 4.331″ | Cutting Direction (HAND) | Left Hand |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Body Width_2 (WB_2) | 0.315″ |
| Number of Pocket (NOP) | 1 | Tool Assembly Length (LTA) | 1.74″ |
Product Features
| Family Description | SELF-GRIP F-type double- and single-ended, reinforced holder blades for parting & grooving. | Country of Origin | Israel |
Shipping Info
Package Weight
0.428
