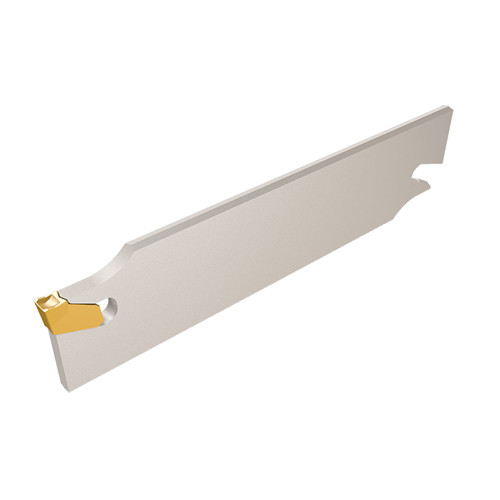

SGFH 19-2
Parting Off Holder; 3.386″ OAL × 0.071″ CW Min. × 0.106″ CW Max. ; Steel

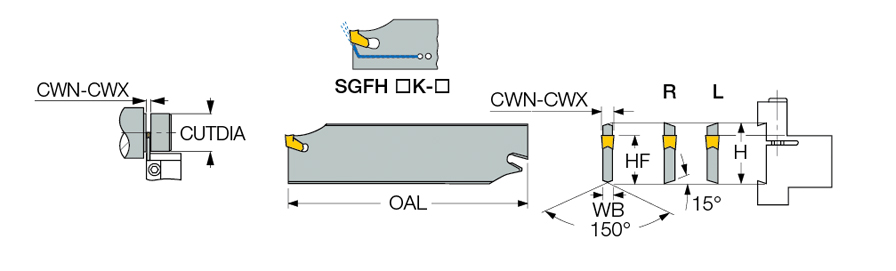

| Shank Height (H) | 0.748″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.071″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.106″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.496″ |
| Overall Length (OAL) | 3.386″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Body Width_2 (WB_2) | 0.063″ |
| Number of Pocket (NOP) | 2 | Tool Assembly Length (LTA) | 1.085″ |
| Shank Standard | Square |
Product Features
| Family Description | SELF-GRIP blades for parting and grooving with single-ended inserts. Blades with coolant holes are designated with "K". | Country of Origin | Israel |
Shipping Info
Package Length
5.00000
Package Width
5.00000
Package Height
5.00000
Package Weight
0.087
