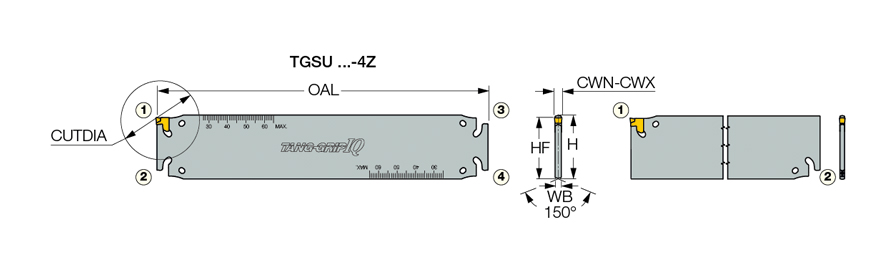

| Shank Height (H) | 1.378″ | Shank Standard | Square |
| Body Width (WB) | 0.098″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.055″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.055″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.378″ |
| Overall Length (OAL) | 7.087″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Body Width_2 (WB_2) | 0.098″ |
| Number of Pocket (NOP) | 2 | Tool Assembly Length (LTA) | 1.181″ |
Product Features

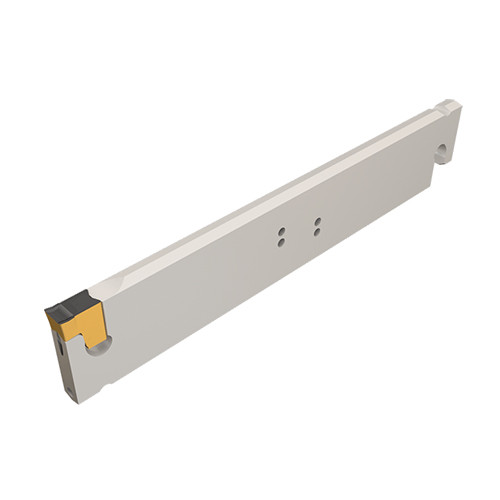

| Family Description | Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. The blade features no upper jaw and a flat top, which allows for ZERO chip interference. | Country of Origin | Israel |
Shipping Info
Package Length
7.50000
Package Width
1.50000
Package Height
.59400
Package Weight
0.275
