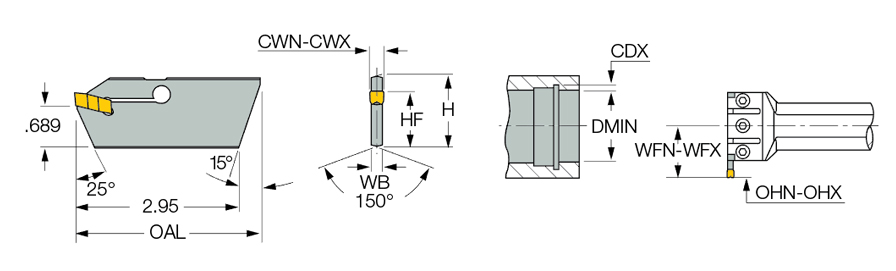

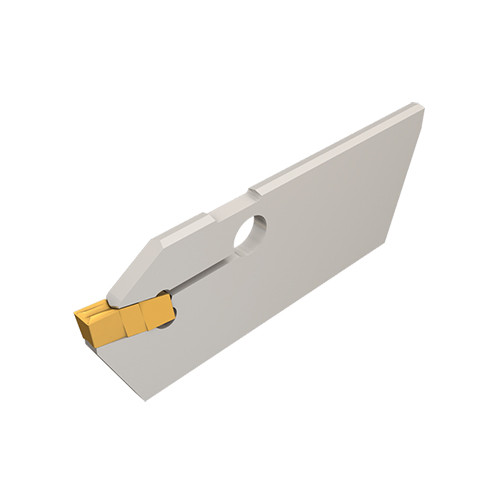

CGHN 32-6M
Parting Off Holder; 3.228″ OAL × 0.22″ CW Min. × 0.252″ CW Max. ; Steel
| Shank Height (H) | 1.26″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Int.) | |
| Body Width (WB) | 0.205″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.22″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.252″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 3.228″ | Cutting Direction (HAND) | Neutral |
| Minimum Bore Diameter (DMIN) | 3.346″ | Measurement Type | Inch |
| Cutting Position | Internal | Tool Assembly Length (LTA) | 0.605″ |
Product Features
| Family Description | Internal grooving and turning blades for GHIC...-85 bars | Country of Origin | Israel |

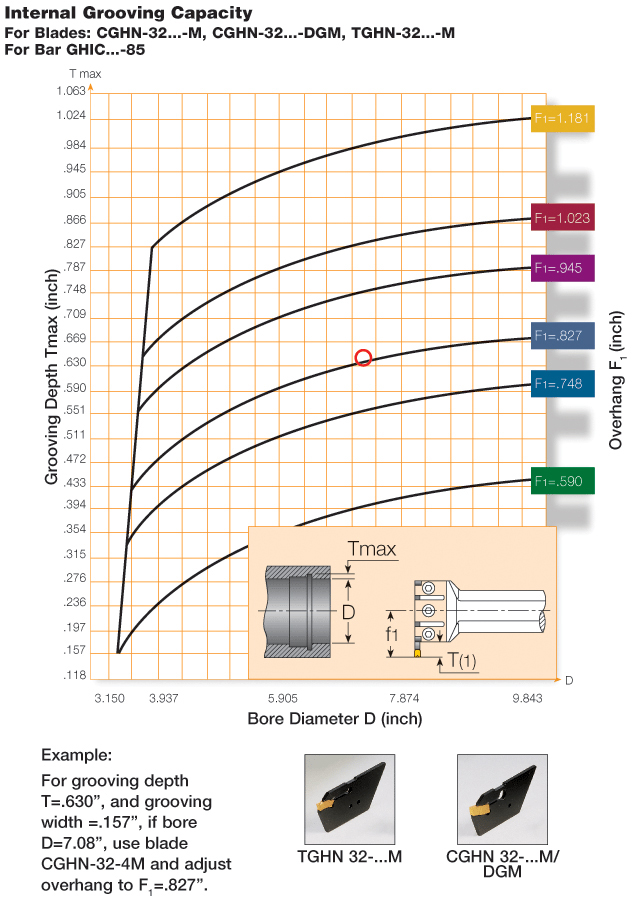

| Remarks | WFN-WFX and OHN-OHX are the blade's extension range Grooving depth (CDX) varies in conformance with blade's overhang (OHN-OHX) and depends on the bore diameter(D). For grooving capacity, click More Info When using TIP inserts,the toolholder seat needs to be modified When using GIVR/L inserts, toolholder's seat needs to be modified |
Shipping Info
Package Weight
0.22
