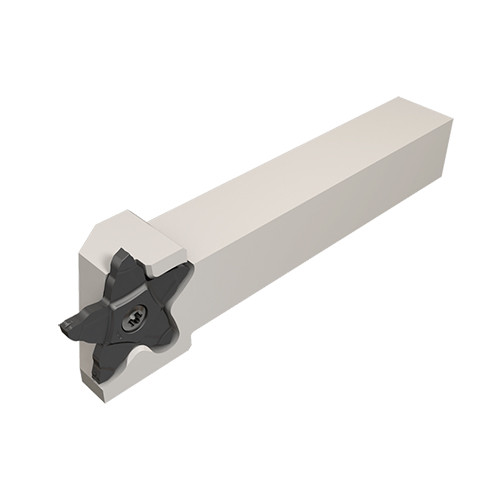

PCHR 16-34
Parting Off Holder; 4.724″ OAL × 0.059″ CW Min. × 0.157″ CW Max. × 0.394″ Max Depth ; Steel

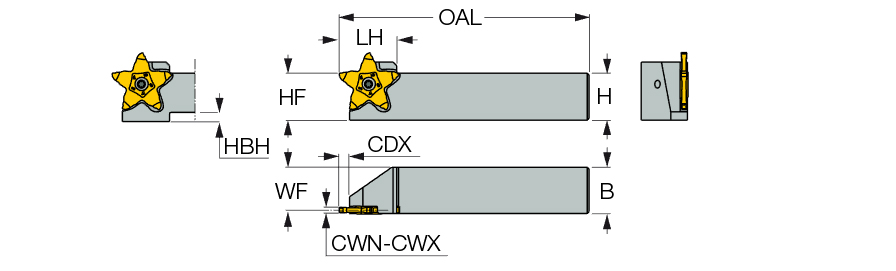

| Shank Height (H) | 0.63″ | Shank Standard | Square |
| Shank Width (B) | 0.63″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.059″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.157″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.724″ | Measurement Type | Inch |
| Head Length (LH) | 1.22″ | Functional Width (WF) | 0.559″ |
| Cutting Depth Maximum (CDX) | 0.394″ | Head Bottom Offset Height (HBH) | 0.354″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.654″ |
| Application | | Ext. Grooving | Face Grooving | Parting | |
Product Features
| Family Description | PENTACUT holders carrying 5 cutting edged inserts, for grooving, parting and recessing. | Country of Origin | Israel |
Shipping Info
Package Weight
0.645
