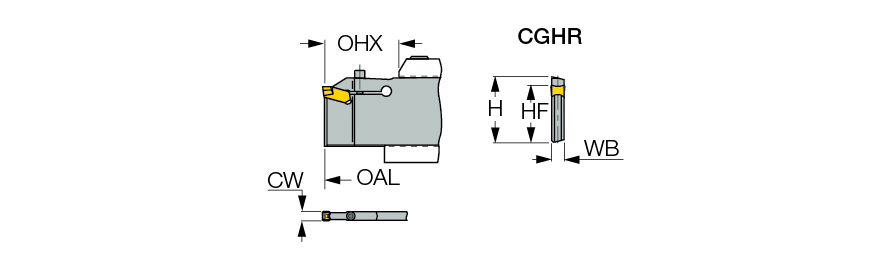

CGHR 53-12D
Parting Off Holder; 10.236″ OAL × 0.472″ CW Min. × 0.571″ CW Max. × 3.661″ Max Depth ; Steel
| Shank Height (H) | 2.071″ | Number of Pocket (NOP) | 2 |
| Body Width (WB) | 0.374″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.472″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.571″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 10.236″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 3.661″ | Measurement Type | Inch |
| Cutting Position | External | Body Width_2 (WB_2) | 0.374″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | | Tool Assembly Length (LTA) | 2.335″ |
Product Features
| Family Description | Deep machining screw clamped blades for wide grooving and heavy turning applications. | Country of Origin | Israel |

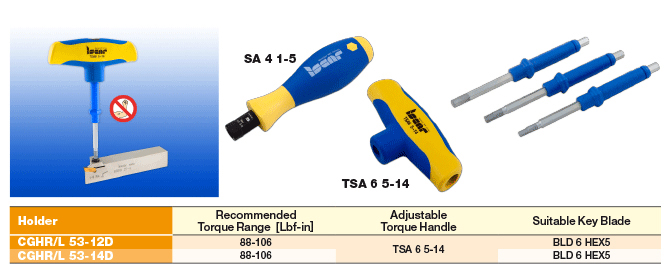

| Remarks | If the diameter of the workpiece is smaller than 7.87, then CDX=3.85 To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
2.156
