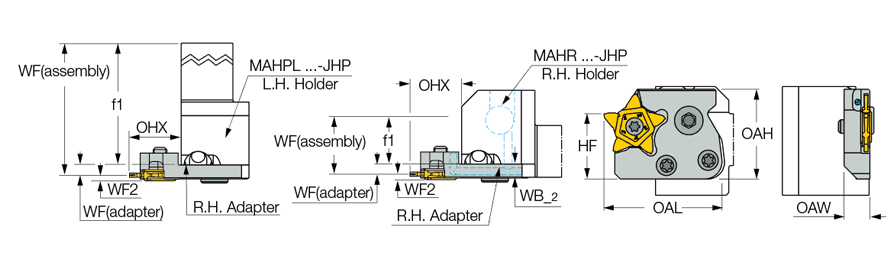

| Cutting Width Minimum (CWN) | 0.02″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 1/8″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 1.724″ | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 1.299″ | Measurement Type | Inch |
| Cutting Position | External | Functional Width (WF) | 0.205″ |
| Application | | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | | Body Width_2 (WB_2) | 0.283″ |
| Shank Standard | Square | Tool Assembly Length (LTA) | 1.638″ |
Product Features

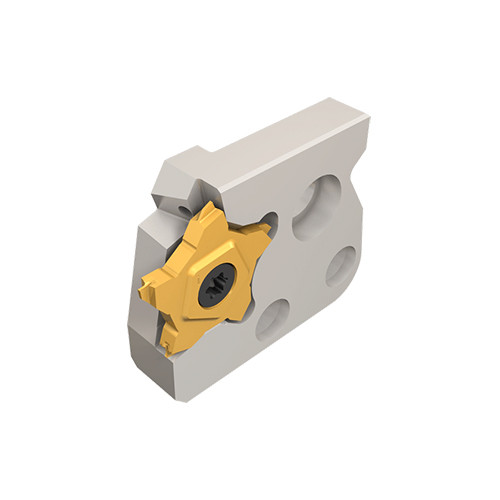

| Family Description | Adapters with high-pressure coolant holes, for PENTACUT grooving inserts. | Country of Origin | Israel |
| Remarks | CDX and CUTDIA according to insert limitation |
Shipping Info
Package Weight
0.201
