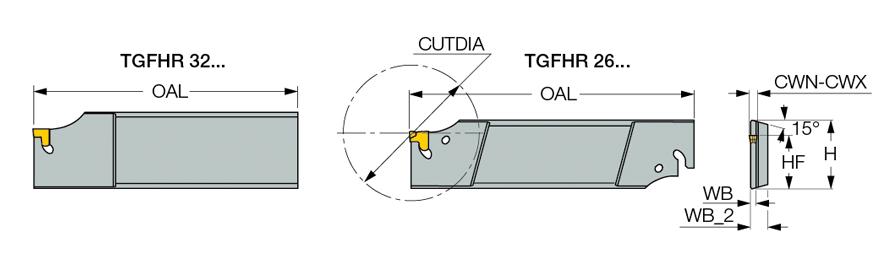

| Shank Height (H) | 1.024″ | Shank Standard | Square |
| Body Width (WB) | 0.098″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.11″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.138″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.811″ |
| Overall Length (OAL) | 4.35″ | Cutting Direction (HAND) | Left Hand |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Body Width_2 (WB_2) | 0.311″ |
| Number of Pocket (NOP) | 2 | Tool Assembly Length (LTA) | 1.614″ |
Product Features

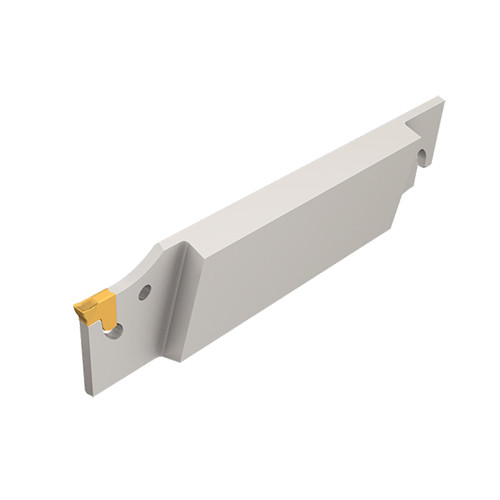

| Family Description | Single-and double-ended, parting and grooving, reinforced blades carrying TANG-GRIP tangentially clamped inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.266
