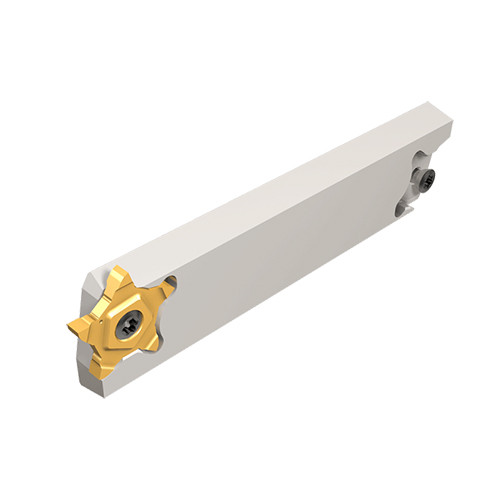

PCHBR 26-24L

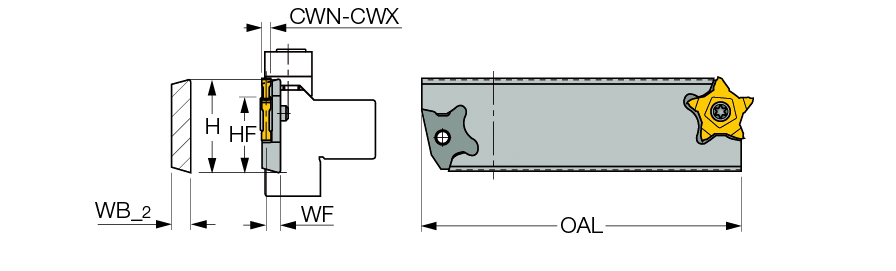

Parting Off Holder; 4.331″ OAL × 0.02″ CW Min. × 0.244″ CW Max. ; Steel
| Shank Height (H) | 1.024″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.02″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.244″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.331″ | Measurement Type | Inch |
| Cutting Position | External | Functional Width (WF) | 0.276″ |
| Application | | Ext. Grooving | Face Grooving | Parting | Threading (Ext.) Groove Turn T | | Body Width_2 (WB_2) | 0.335″ |
| Number of Pocket (NOP) | 2 | Tool Assembly Length (LTA) | 1.319″ |
| Shank Standard | Square |
Product Features
| Family Description | Double-ended parting and grooving blades for PENTA inserts. | Country of Origin | Israel |

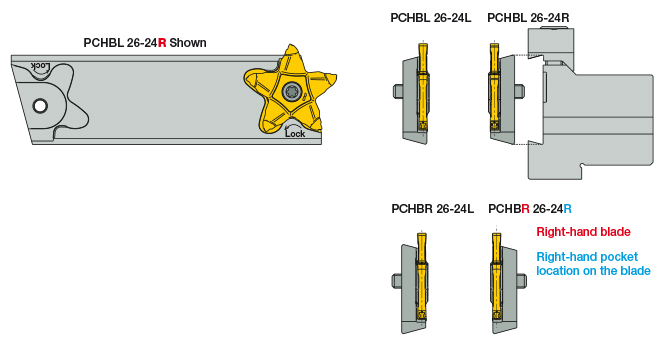

| Remarks | For insert/blade orientation, click on More Info |
Shipping Info
Package Weight
0.445
