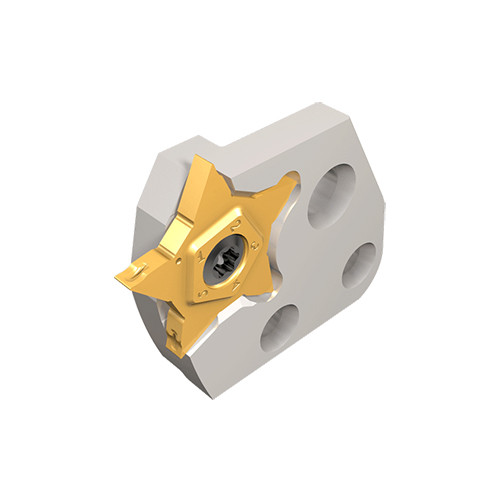

PCADL 24N

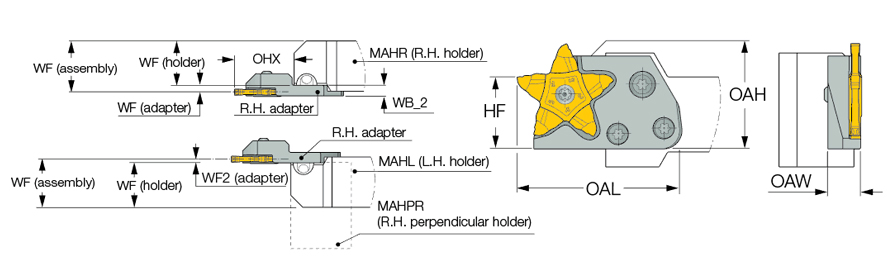

Parting Off Holder; 1.634″ OAL × 0.02″ CW Min. × 1/8″ CW Max. × 1.193″ OAH ; Steel
| Cutting Width Minimum (CWN) | 0.02″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 1/8″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 1.634″ | Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 1.193″ | Measurement Type | Inch |
| Cutting Position | External | Functional Width (WF) | 0.126″ |
| Application | | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | | Body Width_2 (WB_2) | 0.205″ |
| Shank Standard | Square | Tool Assembly Length (LTA) | 1.965″ |
Product Features
| Family Description | MODULAR-GRIP adapters for PENTACUT grooving inserts | Country of Origin | Israel |
| Remarks | CDX and CUTDIA according to insert limitation |
Shipping Info
Package Weight
0.154
