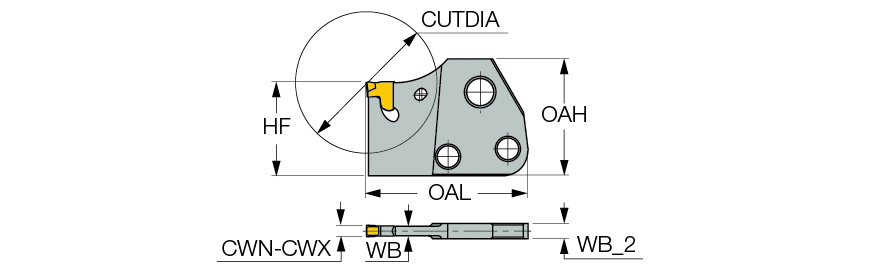

| Body Width (WB) | 0.157″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.185″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.217″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 1.988″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.968″ |
| Overall Height (OAH) | 1.181″ | Measurement Type | Inch |
| Cutting Position | External | Body Width_2 (WB_2) | 0.157″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 0.917″ |
Product Features

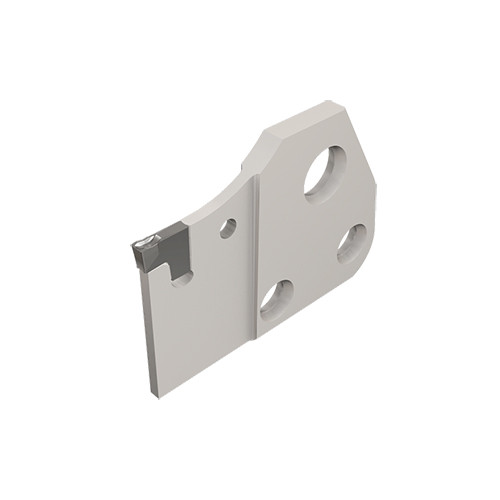

| Family Description | Parting and grooving adapters carrying TANG-GRIP tangentially clamped inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.088
