DGFHL 26B-2D50

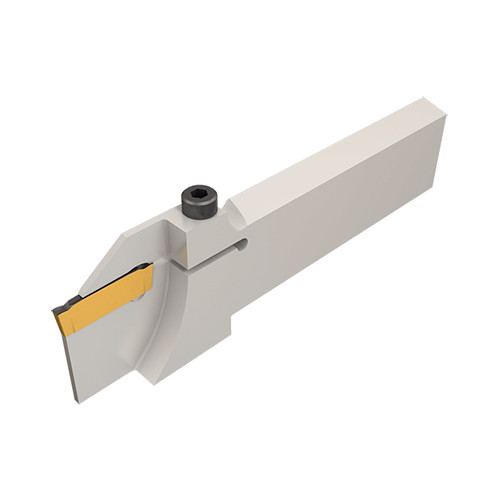

Parting Off Holder; 4.331″ OAL × 0.075″ CW Min. × 0.098″ CW Max. × 0.709″ Max Depth × 1.33″ OAH ; Steel

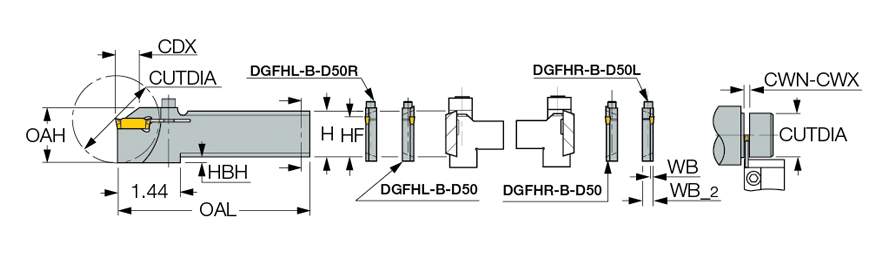

| Shank Height (H) | 1.024″ | Shank Standard | Square |
| Body Width (WB) | 0.063″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.075″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.098″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.968″ |
| Overall Length (OAL) | 4.331″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.709″ | Measurement Type | Inch |
| Overall Height (OAH) | 1.33″ | Body Width_2 (WB_2) | 0.315″ |
| Functional Length (LF) | 4.331″ | Head Bottom Offset Height (HBH) | 0.14″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 2″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts. | Country of Origin | Israel |
| Remarks | Insert (double sided) limit is CDX=.709, If deeper penetration is required the insert should be changed to a single-ended insert DGNM type. DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified. |
