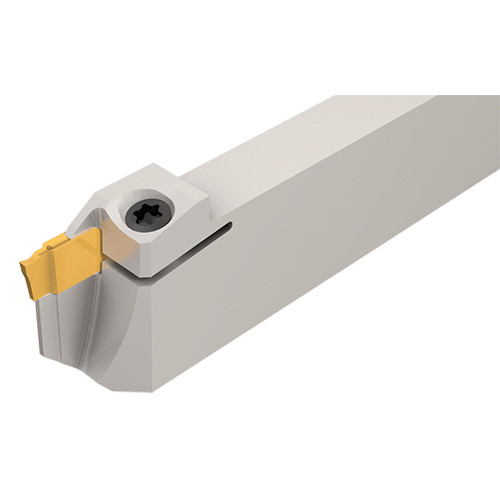

DGTL 2009B-1.5T9SH
Parting Off Holder; 3.937″ OAL × 0.039″ CW Min. × 0.059″ CW Max. × 0.354″ Max Depth × 0.93″ OAH ; Steel

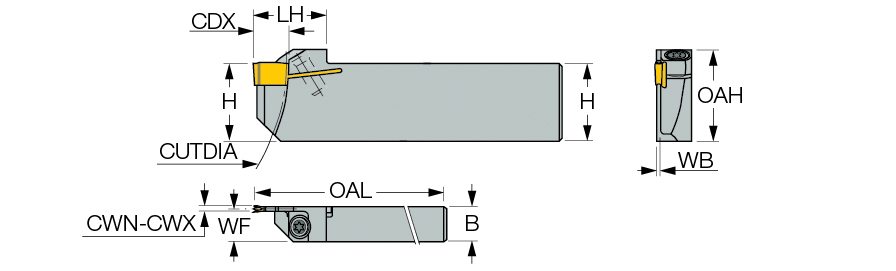

| Shank Height (H) | 0.787″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 0.354″ | Shank Standard | Square |
| Body Width (WB) | 0.047″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.039″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.063″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.74″ |
| Overall Length (OAL) | 3.937″ | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 0.748″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.354″ | Functional Width (WF) | 0.331″ |
| Overall Height (OAH) | 0.93″ | Tool Assembly Length (LTA) | 1.142″ |
| Cutting Position | External |
Product Features
| Family Description | Integral shank, reinforced parting and grooving short head tools carrying DGN double-ended inserts. | Country of Origin | Israel |
| Remarks | Important: .055 (1.4 mm) width inserts should be used only on tools for .055 specific width! |
Shipping Info
Package Weight
0.370
