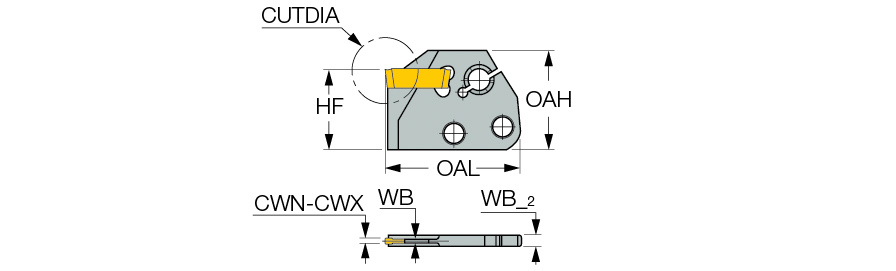

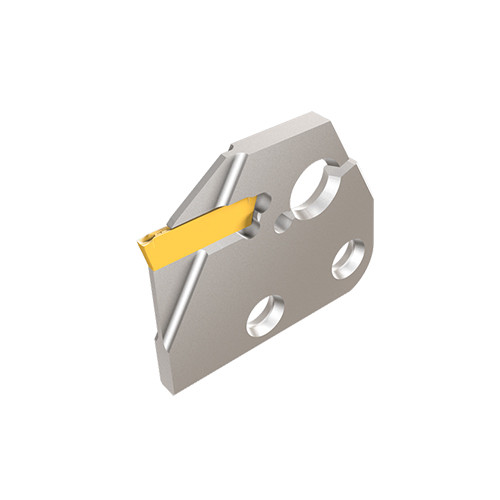

DGAD 1.4B-D16
Parting Off Holder; 1.449″ OAL × 0.055″ CW Min. × 0.055″ CW Max. × 1.193″ OAH ; Steel
| Body Width (WB) | 0.039″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.055″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.055″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.63″ |
| Overall Length (OAL) | 1.449″ | Cutting Direction (HAND) | Neutral |
| Overall Height (OAH) | 1.193″ | Measurement Type | Inch |
| Cutting Position | External | Body Width_2 (WB_2) | 0.126″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 1.449″ |
| Shank Standard | Square |
Product Features
| Family Description | Parting and grooving screw-clamped adapters for DO-GRIP double-ended inserts. | Country of Origin | Israel |
| Remarks | Up to.118 depth, without any limitation on the diameter. DG..1.0 insert can also be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-click on More Info |
Shipping Info
Package Weight
0.055
