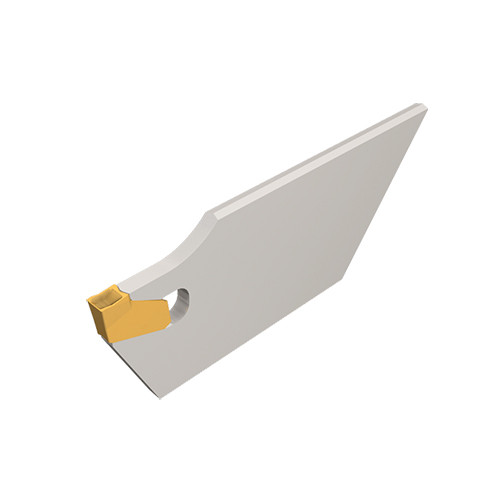

SGFH 26-4M
Parting Off Holder; 2.48″ OAL × 0.139″ CW Min. × 0.178″ CW Max. ; Steel

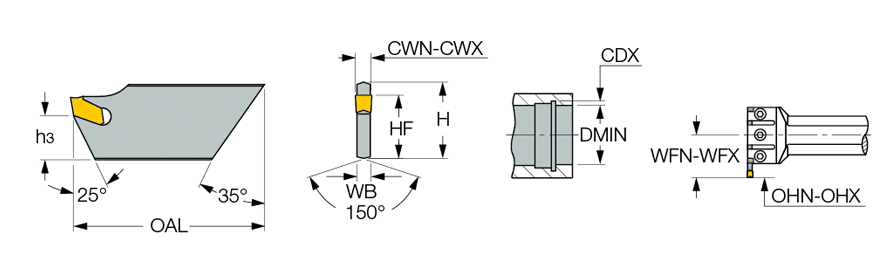

| Shank Height (H) | 1.024″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.139″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.178″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 2.48″ | Cutting Direction (HAND) | Neutral |
| Minimum Bore Diameter (DMIN) | 2.756″ | Measurement Type | Inch |
| Cutting Position | Internal | Body Width_2 (WB_2) | 0.126″ |
| Application | | Int. Grooving | | Tool Assembly Length (LTA) | 0.747″ |
Product Features
| Family Description | Internal grooving blades for GHIC...-70 bars | Country of Origin | Israel |
| Remarks | Grooving depth (Tmax-r) varies in conformance with blade's overhang (f and F1) and it depends on the bore diameter (D). For grooving capacity, click More Info SGFH...M can be modified from external double-sided blades |
Shipping Info
Package Weight
0.115
