SGFS 0-17-2

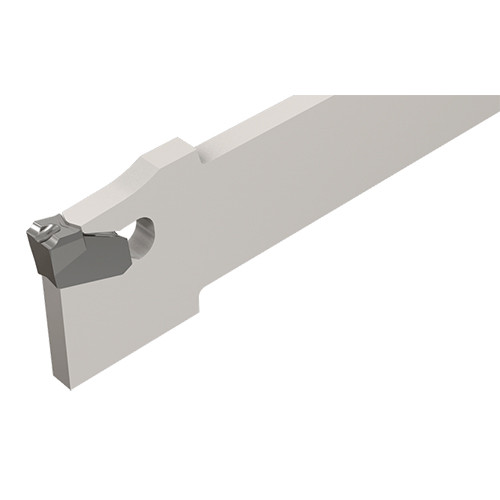

Parting Off Holder; 4.331″ OAL × 0.071″ CW Min. × 0.106″ CW Max. ; Steel

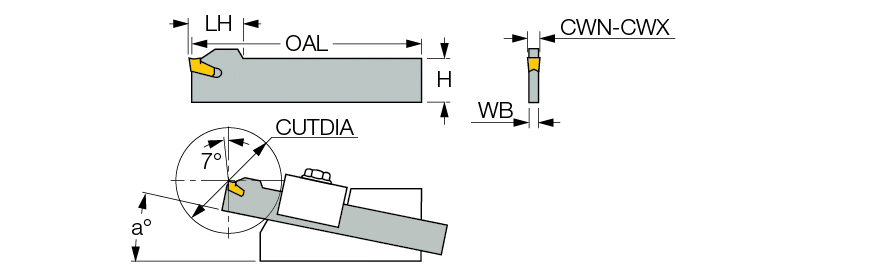

| Shank Height (H) | 0.673″ | Shank Standard | Square |
| Body Width (WB) | 0.063″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.071″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.106″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.378″ |
| Overall Length (OAL) | 4.331″ | Cutting Direction (HAND) | Neutral |
| Head Length (LH) | 0.591″ | Measurement Type | Inch |
| Cutting Position | External | Tool Assembly Length (LTA) | 0.984″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Replacement SELF-GRIP blades for HSS and brazed parting tools. | Country of Origin | Israel |
Shipping Info
Package Weight
0.099
