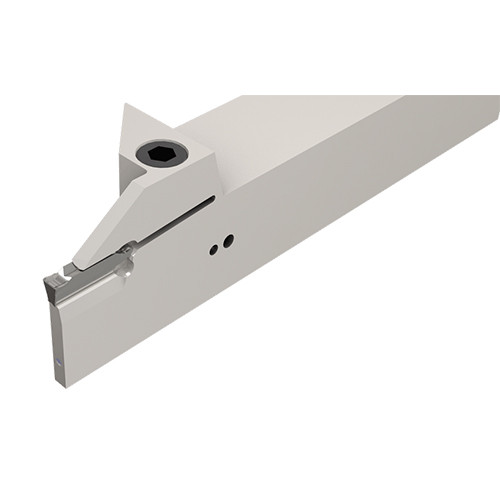

DGTR 25.4BC-4T25
Parting Off Holder; 6″ OAL × 0.157″ CW Min. × 0.157″ CW Max. × 0.98″ Max Depth ; Steel

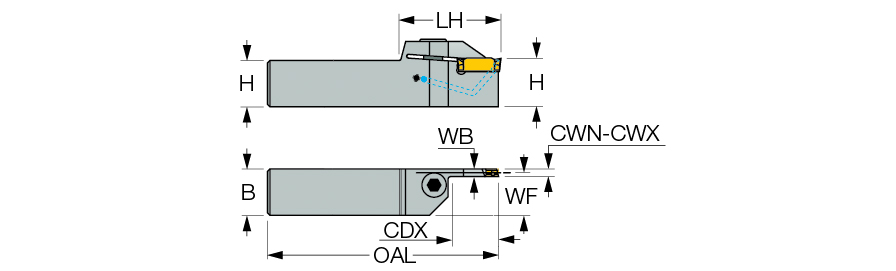

| Shank Height (H) | 1″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 1″ | Shank Standard | Square |
| Body Width (WB) | 0.134″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.157″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.157″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Head Length (LH) | 1.7″ | Functional Width (WF) | 0.933″ |
| Cutting Depth Maximum (CDX) | 0.98″ | Tool Assembly Length (LTA) | 2.04″ |
| Cutting Position | External |
Product Features
| Family Description | Parting and grooving tools with coolant holes carrying JET-CUT inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
3.218
