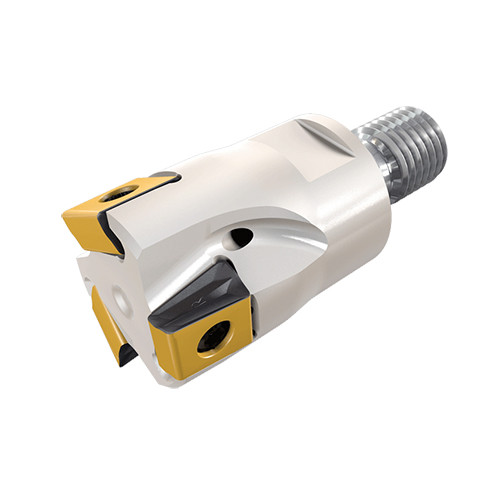

T490 ELN D.75-3-M10
Indexable End Mill; 3/4″ Dia. × 0.315″ LOC × 0.71″ Shank Dia. × 1.97″ OAL × 1″ LU ; 3 FL ; 90 Degrees

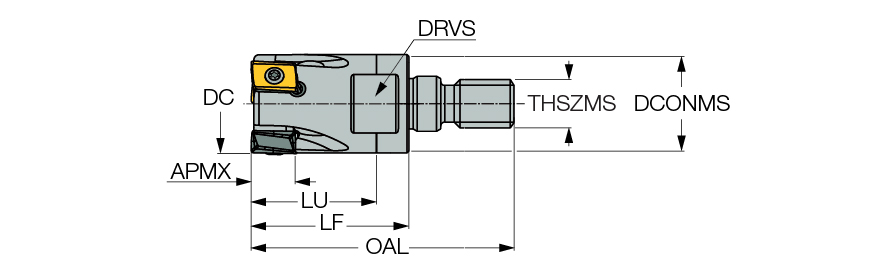

| Cutting Diameter (DC/DCX) | 3/4″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 3/4″ | Connection Thread Nominal Size Machine Side (THSZMS) | M10 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 0.591″ |
| Depth of Cut Maximum (APMX) | 0.315″ | Usable Length (LU) | 1″ |
| Overall Length (OAL) | 1.97″ | Flute Count (NOF) | 3 |
| Ramping Angle Maximum (RMPX) | 1.8 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.71″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | T490 LNMT 0804PNR | Measurement Type | Inch |
| Weight of Item (WT) | 0.11 Lbs | Body Material | Steel |
| Functional Length (LF) | 1.18″ | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Family Description | HELITANG, 90° endmills with a FLEXFIT threaded adaptation carrying T490 LNMT/LNHT 08... tangentially clamped inserts with 4 helical, 8 mm long cutting edges. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.198
