DGTL 16BC-3D35

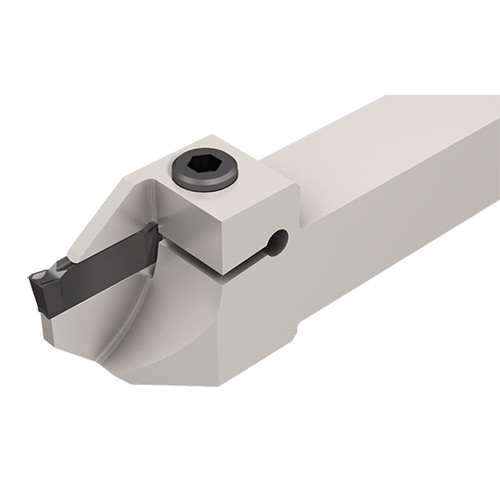

Parting Off Holder; 5.512″ OAL × 0.118″ CW Min. × 1/8″ CW Max. × 0.63″ Max Depth ; Steel

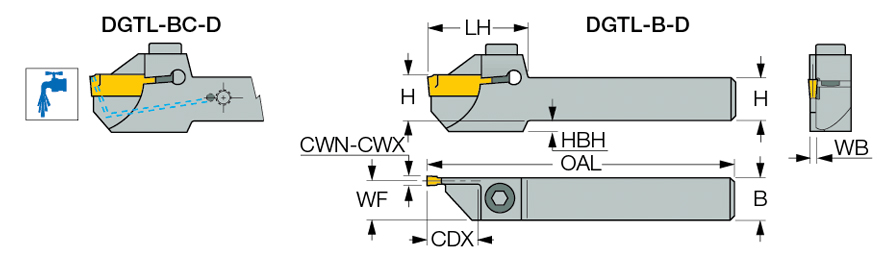

| Shank Height (H) | 0.63″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 0.63″ | Shank Standard | Square |
| Body Width (WB) | 0.094″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.118″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 5.512″ | Measurement Type | Inch |
| Head Length (LH) | 1.224″ | Functional Width (WF) | 0.583″ |
| Cutting Depth Maximum (CDX) | 0.63″ | Head Bottom Offset Height (HBH) | 0.1″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.689″ |
Product Features
| Family Description | Integral shank, reinforced (with and without coolant holes) parting and grooving tools for double-ended inserts. | Country of Origin | Israel |
| Remarks | Important: 1.4 mm (.055) width inserts should be used only on tools for 1.4 mm specific width tools DGN/R/L 1 mm (.039) inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on More Info |
Shipping Info
Package Weight
0.677
Related Documentation

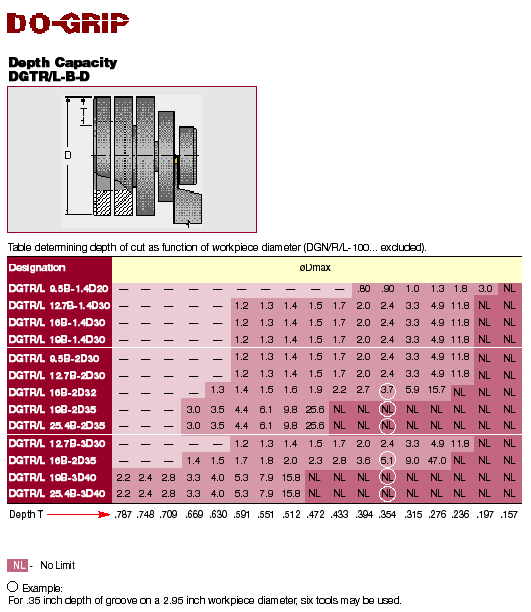

DG..1.0 insert can be mounted into pocket sizes 2 and 3. For DGN/R/L 1 mm inserts' depth capacity table and modification instructions for the holder pocket, see below.
