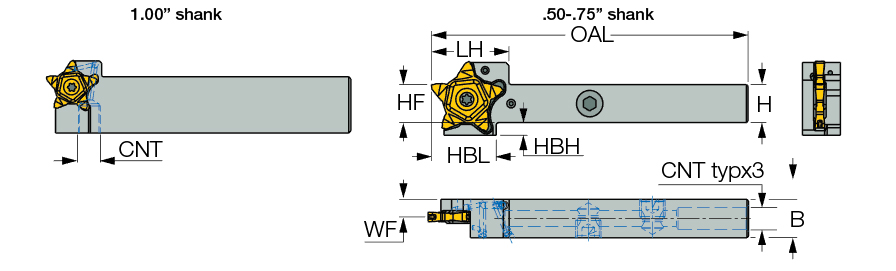

PCHR 25.4-24-JHP
Parting Off Holder; 5.32″ OAL × 0.02″ CW Min. × 0.126″ CW Max. × 0.256″ Max Depth ; Steel
| Shank Height (H) | 1″ | Shank Standard | Square |
| Shank Width (B) | 1″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.02″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.126″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5.32″ | Measurement Type | Inch |
| Head Length (LH) | 1″ | Functional Width (WF) | 3/4″ |
| Cutting Depth Maximum (CDX) | 0.256″ | Coolant Entry Thread Size (CNT) | G 1/8-28 |
| Cutting Position | External | Tool Assembly Length (LTA) | 0.954″ |
| Application | | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | |
Product Features
| Family Description | Grooving, parting and recessing tools carrying PENTA inserts with channels for high-pressure coolant. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
1.499
